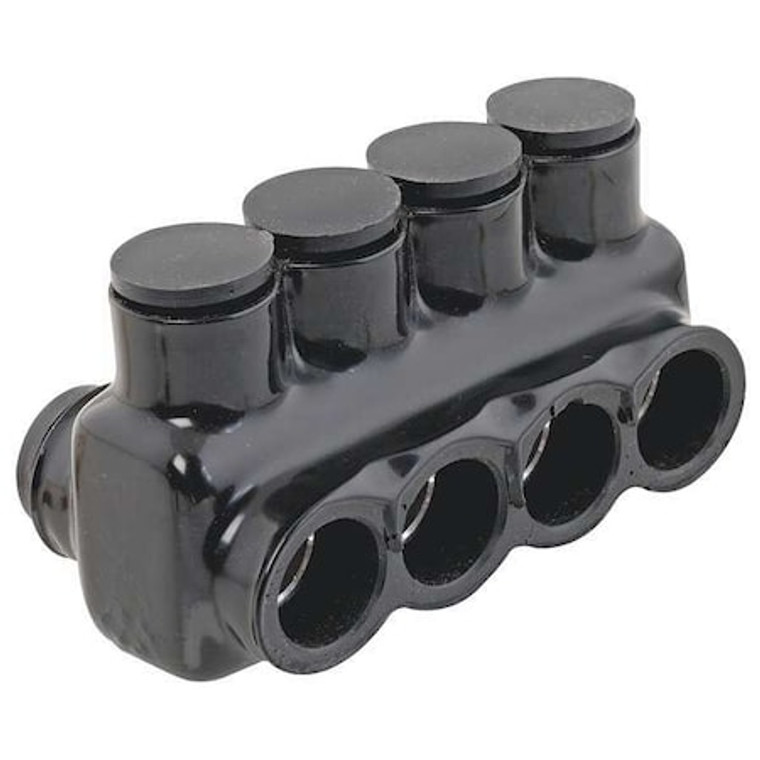

Insulated Multitap Connector, 7.25 In. L - IPLD750-4B

Insulated Multitap Connector, 7.25 In. L - IPLD750-4B

Polaris
SKU:
IPLD750-4B
|
UPC:
662381970176
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Head Style Hex, Hex Size 3/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Cables
Additional Information
Country of Origin:
United States
Item:
Insulated Multitap Connector
Connector Type:
Double-Sided Entry
No. of Ports:
4
Min. Conductor Size:
250 kcmil
Max. Conductor Size:
750 kcmil
Insulation Material:
Plastisol
Stud Size:
5/16 in
Length:
7.25 in
Width:
1.75 in
Direct Burial Rated:
No
Screw Material:
Aluminum
Max. Voltage:
600V AC/DC
Body Material:
Aluminum
Head Style:
Hex
Standards:
cULus, UL 486A
Length (Straight Wireway):
7.25 in
Tap Shape:
Z
RoHS Compliant:
Yes
For Stranded Copper Wire Size - Minimum:
250 kcmil
For Conductor Material:
Aluminum, Copper
Maximum Voltage:
600 V
Torque:
550 in-lb
Strip Length:
2 in
Compatible with Product Type:
Copper and Aluminum Cables
Number of Ports:
4
Overall Width:
3.41 in
Special Features:
Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, Supplied With Removable Plugs to Close
Color:
Black
Hex Size:
3/8 in
For Stranded Copper Wire Size - Maximum:
750 kcmil
Finish:
Plastisol
Maximum Operating Temperature:
194 Degrees F
Overall Length:
6.38 in
Minimum Operating Temperature:
-49 Degrees F
Ul File No:
E186991
Conductor Al Size Range:
750 MCM – 1/0 AWG
Env Temp:
Cold Temperature rated to -45C
Hex Wrench Size:
3/8
Wire Cable Class:
Class B, Class C
Conductor Type:
Copper, Aluminum
Max Torque:
550
Assortment:
Black UV Coated Pre-Insulated Connectors
Conductors Count:
4
Ul Standard:
UL 486A/B
Cu Conductor Max Amp:
1178
Temp Rating:
75C, AL7CU
Al Conductor Max Amp:
930
Certifications:
cULus
Conductor Cu Size Range:
750 MCM – 1/0 AWG
Package Quantity:
1
