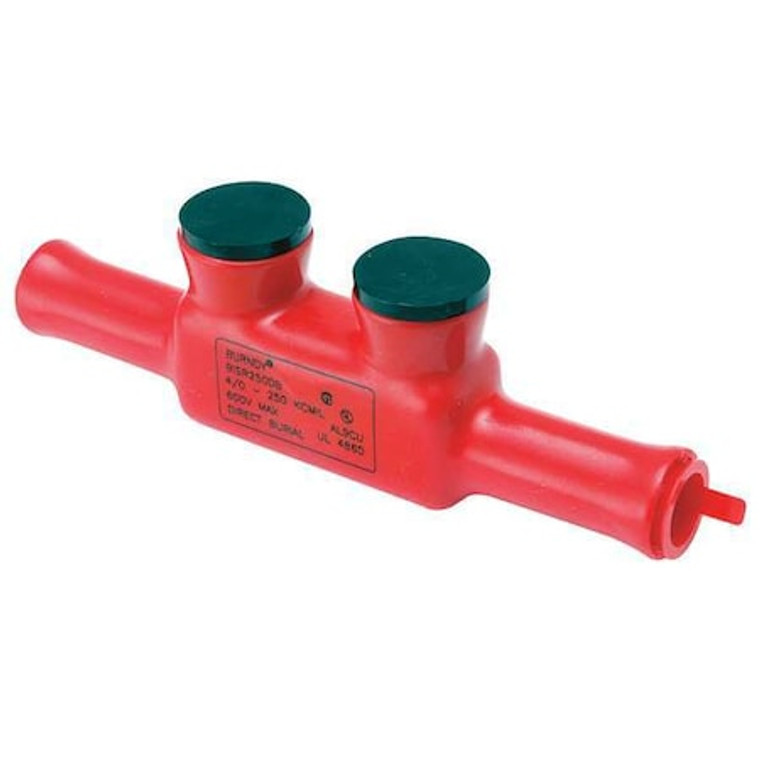

Insulated Multitap Connector, 6.70 In. L - BISR250DB

Insulated Multitap Connector, 6.70 In. L - BISR250DB

Burndy
SKU:
BISR250DB
|
UPC:
781810555316
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Insulated Multitap Connector, Body Material Aluminum, Color Red, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL 486A, UL 486B, UL Listed
Additional Information
Country of Origin:
United States
Item:
Insulated Multitap Connector
Connector Type:
Double-Sided Entry
No. of Ports:
2
Min. Conductor Size:
4/0
Max. Conductor Size:
250 kcmil
Insulation Material:
Plastisol
Stud Size:
5/16 in
Material:
Aluminum
Length:
6.7 in
Width:
2.17 in
Screw Material:
Aluminum
Standards:
UL 486A, UL 486B, UL Listed
Direct Burial Rated:
Yes
Max. Voltage:
600V AC/DC
Head Style:
Hex
Body Material:
Aluminum
Length (Straight Wireway):
6.7 in
Overall Width:
1.18 in
Finish:
Unplated
Overall Length:
6.7 in
Tap Shape:
T
Special Features:
Insulated, Oxide Inhibitor Pre-Installed Preventing Moisture and Contaminants From Entering Contact Area, Saves Time
Mounting Hole Size:
Not Applicable
For Stranded Copper Wire Size - Minimum:
4/0 AWG
For Stranded Copper Wire Size - Maximum:
250 kcmil
RoHS Compliant:
Yes
Number of Ports:
2
Color:
Red
Torque:
360 in-lb
Maximum Operating Temperature:
194 Degrees F
Strip Length:
7/8 in
Hex Size:
5/16 in
For Conductor Material:
Aluminum, Copper
Maximum Voltage:
600 V
Conductor Size:
4/0 AWG-250 KCMIL
Type:
BISR
Standards - Industry Standards Met:
UL468A-468B
Voltage - Maximum:
600 V
Item Type:
3B
Temperature Rating:
90 °C
Hex Key:
5/16 in
Conductor - Copper Str Size Range:
4/0 - 250 Str
Certification - CSA Approved:
No
Dimension - Strip Length inch:
7/8 in
Conductor - Copper Str Size:
4/0 AWG;250 kcmil
Dimension - L Length Overall mm:
170.18 mm
Application:
For Outside Direct Burial
Conductor Type:
AL C Str-SizeCU C Str-Size
Conductor - AL Str Size Range:
4/0 - 250 Str
Operating Voltage:
600 V
Rating - Minimum Voltage:
600
Dimension - Screw Size inch:
45054
Installation Torque Recommended in-lb:
360 in-lb
Trade Name:
UNITAPâ„¢
Dimension - Height inch:
2.17 in
Insulation:
Y
Industry Standard(s):
UL468A-468B
Dimension - Width inch:
1.18 in
Plating Type:
Unplated
Dimension - Width mm:
29.97 mm
UL Listed:
Yes
Physical Attribute - Number of Screws:
2
Conductor - AL Str Size:
4/0;250 kcmil
Insulation Type:
Plastisol
Certification - UL Listed Direct Burial:
Yes
Plated:
N
Physical Attribute - Screw Type:
Allen
Dimension - Length Overall inch:
6.7 in
Package Quantity:
1
