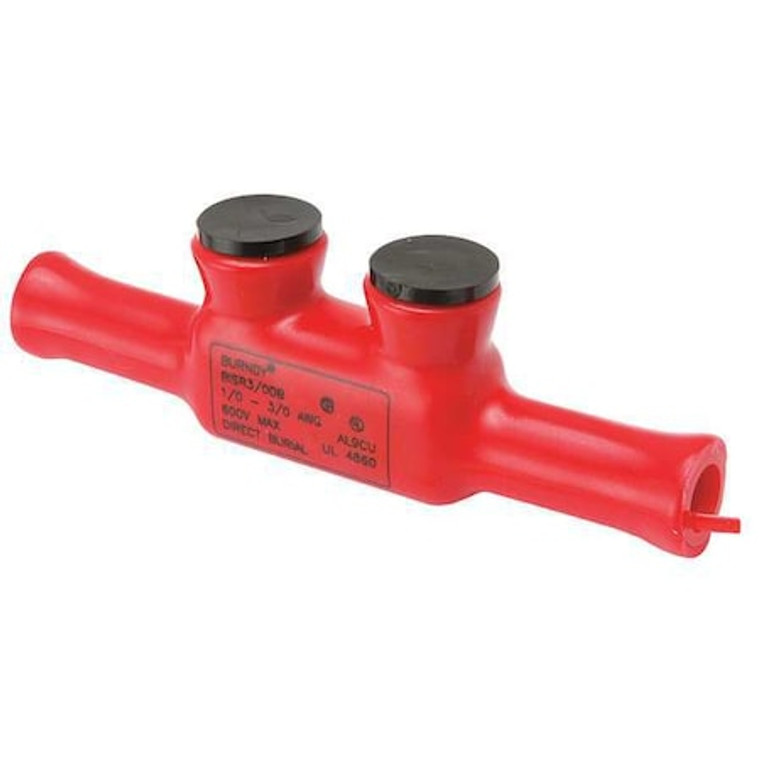

Insulated Multitap Connector, 6.25 In. L - BISR3/0DB

Insulated Multitap Connector, 6.25 In. L - BISR3/0DB

Burndy
SKU:
BISR3/0DB
|
UPC:
781810555330
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Insulated Multitap Connector, Body Material Aluminum, Color Red, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL 486A, UL 486B, UL Listed, Connector Type Double-Sided Entry
Additional Information
Country of Origin:
United States
Item:
Insulated Multitap Connector
Connector Type:
Double-Sided Entry
No. of Ports:
2
Min. Conductor Size:
1/0
Max. Conductor Size:
3/0 AWG
Insulation Material:
Plastisol
Stud Size:
3/16 in
Material:
Aluminum
Length:
6.25 in
Width:
2.0 in
Screw Material:
Aluminum
Direct Burial Rated:
Yes
Max. Voltage:
600V AC/DC
Standards:
UL 486A, UL 486B, UL Listed
Body Material:
Aluminum
Head Style:
Hex
Length (Straight Wireway):
6.25 in
Overall Width:
0.99 in
For Stranded Copper Wire Size - Minimum:
1/0 AWG
For Stranded Copper Wire Size - Maximum:
3/0 AWG
Tap Shape:
T
For Conductor Material:
Aluminum, Copper
Maximum Operating Temperature:
194 Degrees F
Torque:
220 in-lb
Special Features:
Insulated, Oxide Inhibitor Pre-Installed Preventing Moisture and Contaminants From Entering Contact Area, Saves Time
Overall Length:
6.25 in
Hex Size:
3/16 in
Color:
Red
Maximum Voltage:
600 V
Finish:
Unplated
Number of Ports:
2
RoHS Compliant:
Yes
Strip Length:
7/8 in
Mounting Hole Size:
Not Applicable
Type:
BISR
Conductor Size:
1/0-3/0 AWG
Standards - Industry Standards Met:
UL468A-468B
Conductor - Copper Str Size:
1/0 ;2/0 AWG;3/0 AWG
Installation Torque Recommended in-lb:
220 in-lb
Physical Attribute - Screw Type:
Allen
Dimension - Width mm:
25.15 mm
Dimension - Length Overall inch:
6.25 in
Conductor - Copper Str Size Range:
1/0 - 3/0 Str
Dimension - Width fraction:
99/100 in
Dimension - Height fraction:
2 in
Certification - UL Listed Direct Burial:
Yes
Physical Attribute - Number of Screws:
2
Dimension - Screw Size inch:
45123
Conductor - AL Str Size Range:
1/0 - 3/0 Str
Material - Hardware:
Aluminum
Plating Type:
Unplated
Plated:
N
Dimension - Width inch:
0.99 in
Rating - Minimum Voltage:
600
Certification - CSA Approved:
No
Operating Voltage:
600 V
Dimension - Height inch:
1.96 in
Insulation:
Y
Voltage - Maximum:
600 V
Insulation Type:
Plastisol
Trade Name:
UNITAPâ„¢
Conductor - AL Str Size:
1/0;2/0 AWG;3/0 AWG
UL Listed:
Yes
Temperature Rating:
90 °C
Hex Key:
3/16 in
Application:
For Direct Burial
Conductor Type:
AL C Str-SizeCU C Str-Size
Industry Standard(s):
UL468A-468B
Dimension - L Length Overall mm:
158.75 mm
Dimension - Strip Length inch:
7/8 in
Package Quantity:
1
