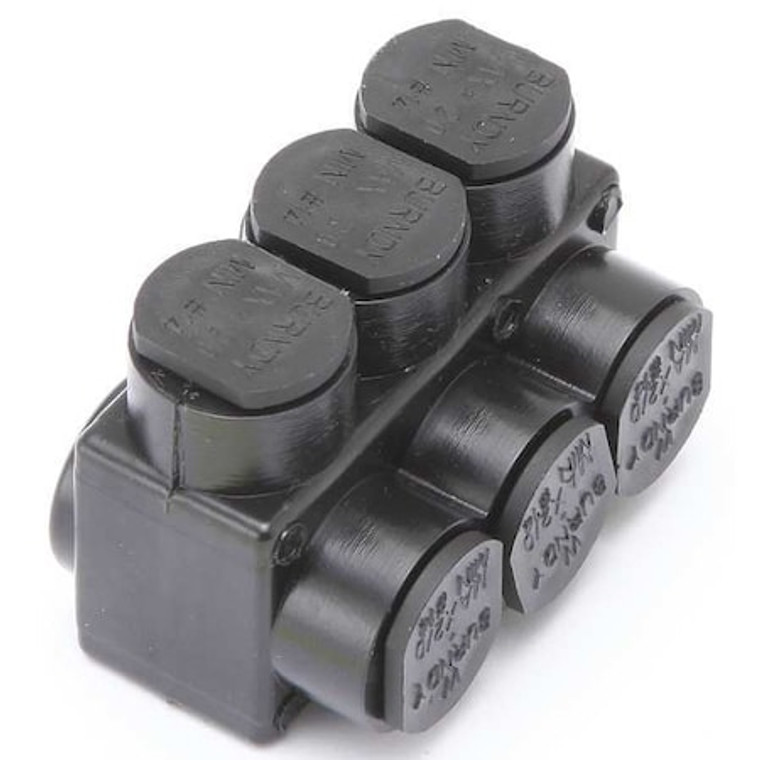

Insulated Multitap Connector, 2.19 In. L - 1PL2/03

Insulated Multitap Connector, 2.19 In. L - 1PL2/03

Burndy
SKU:
1PL2/03
|
UPC:
781810555170
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 3, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
Additional Information
Country of Origin:
United States
Item:
Insulated Multitap Connector
Connector Type:
Single-Sided Entry
No. of Ports:
3
Min. Conductor Size:
14 AWG
Max. Conductor Size:
2/0 AWG
Insulation Material:
Plastisol
Stud Size:
3/16 in
Material:
Aluminum
Length:
2.19 in
Width:
1.38 in
Screw Material:
Aluminum
Standards:
UL Listed
Max. Voltage:
600V AC/DC
Body Material:
Aluminum
Head Style:
Hex
Direct Burial Rated:
No
Length (Straight Wireway):
2.19 in
Color:
Black
Minimum Operating Temperature:
-40 Degrees F
For Conductor Material:
Aluminum, Copper
Maximum Voltage:
600 V
For Stranded Copper Wire Size - Maximum:
2/0 AWG
Overall Width:
1.31 in
Mounting Hole Size:
Not Applicable
Maximum Operating Temperature:
194 Degrees F
For Stranded Copper Wire Size - Minimum:
14 AWG
Overall Length:
2.19 in
RoHS Compliant:
Yes
Special Features:
Insulated, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Saves Time By Eliminating The Need For Taping, UV Rated
Number of Ports:
3
Hex Size:
3/16 in
Torque:
120 in-lb
Finish:
Unplated
Compatible with Product Type:
Code Conductor
Tap Shape:
L
Type:
BIBS, Multi-Port
Conductor Size:
14-2/0 AWG
Dimension - Height inch:
1.38 in
Insulation Type:
Plastisol
Rating - Minimum Voltage:
600
Plated:
N
Hex Key:
45001
Dimension - Width inch:
1.31 in
UL Listed:
Yes
Physical Attribute - Number of Screws:
3
Conductor - Copper Str Size Range:
14 AWG-2/0 AWG
Conductor - AL Str Size Range:
14 AWG-2/0 AWG
Installation Torque Recommended in-lb:
120 in-lb
Application:
For Indoor Use Only, Copper Or Stranded Aluminum
Dimension - Length Overall inch:
2.19 in
Dimension - Width fraction:
1-31/100 in
Conductor - Copper Str Size:
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
Certification - UL Listed Direct Burial:
No
Conductor - AL Str Size:
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
Dimension - L Length Overall mm:
56 mm
Trade Name:
UNITAPâ„¢
Conductor Type:
AL C Str-SizeCU C Str-Size
Temperature Rating:
194° F
Plating Type:
Unplated
Voltage - Maximum:
600 V
Dimension - Height fraction:
1.375 in
Insulation:
Y
Material - Hardware:
Aluminum
Dimension - Width mm:
33 mm
Dimension - Screw Size inch:
45123
Certification - CSA Approved:
No
Package Quantity:
1
