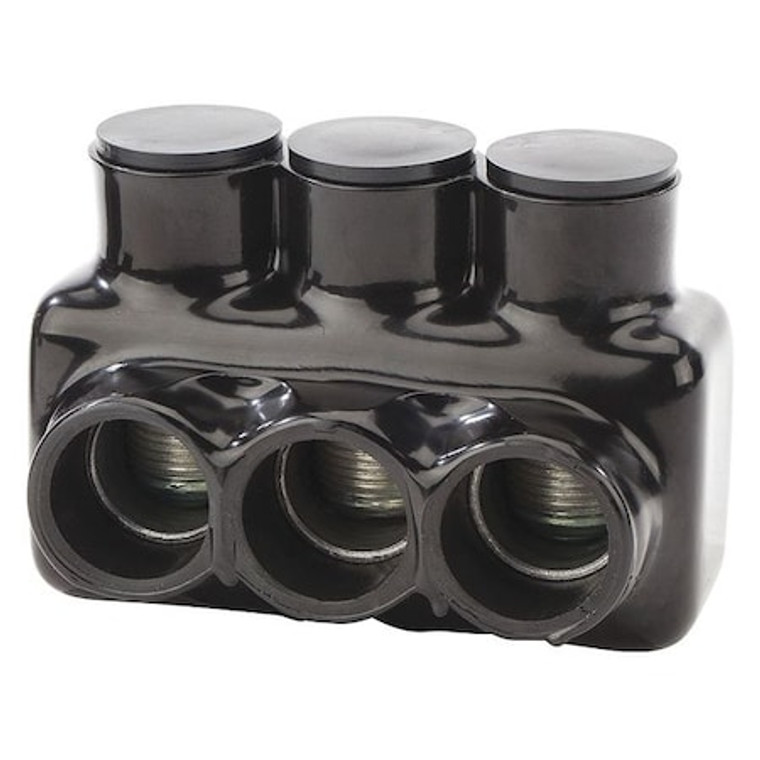

Insulated Multitap Connector, 1.75 In. W - IPLD750-3B

Insulated Multitap Connector, 1.75 In. W - IPLD750-3B

Polaris
SKU:
IPLD750-3B
|
UPC:
662381970169
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Head Style Hex, Hex Size 3/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Cables
Additional Information
Country of Origin:
United States
Item:
Insulated Multitap Connector
Connector Type:
Double-Sided Entry
No. of Ports:
3
Min. Conductor Size:
250 kcmil
Max. Conductor Size:
750 kcmil
Insulation Material:
Plastisol
Stud Size:
5/16 in
Length:
7.25 in
Width:
1.75 in
Max. Voltage:
600V AC/DC
Screw Material:
Aluminum
Standards:
cULus, UL 486A
Body Material:
Aluminum
Head Style:
Hex
Direct Burial Rated:
No
Length (Straight Wireway):
7.25 in
Number of Ports:
3
Special Features:
Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, Supplied With Removable Plugs to Close
RoHS Compliant:
Yes
For Conductor Material:
Aluminum, Copper
Compatible with Product Type:
Copper and Aluminum Cables
Strip Length:
2 in
Minimum Operating Temperature:
-49 Degrees F
Overall Length:
4.95 in
For Stranded Copper Wire Size - Maximum:
750 kcmil
Tap Shape:
Z
Maximum Voltage:
600 V
For Stranded Copper Wire Size - Minimum:
250 kcmil
Finish:
Plastisol
Color:
Black
Torque:
550 in-lb
Overall Width:
3.41 in
Maximum Operating Temperature:
194 Degrees F
Hex Size:
3/8 in
Al Conductor Max Amp:
385
Max Torque:
550
Conductor Al Size Range:
750 MCM – 1/0 AWG
Ul File No:
E186991
Ul Standard:
UL 486A/B
Cu Conductor Max Amp:
475
Conductors Count:
3
Certifications:
cULus
Hex Wrench Size:
3/8
Temp Rating:
75C, AL7CU
Conductor Type:
Copper, Aluminum
Conductor Cu Size Range:
750 MCM – 1/0 AWG
Wire Cable Class:
Class B, Class C
Env Temp:
Cold Temperature rated to -45C
Assortment:
Black UV Coated Pre-Insulated Connectors
Package Quantity:
1
