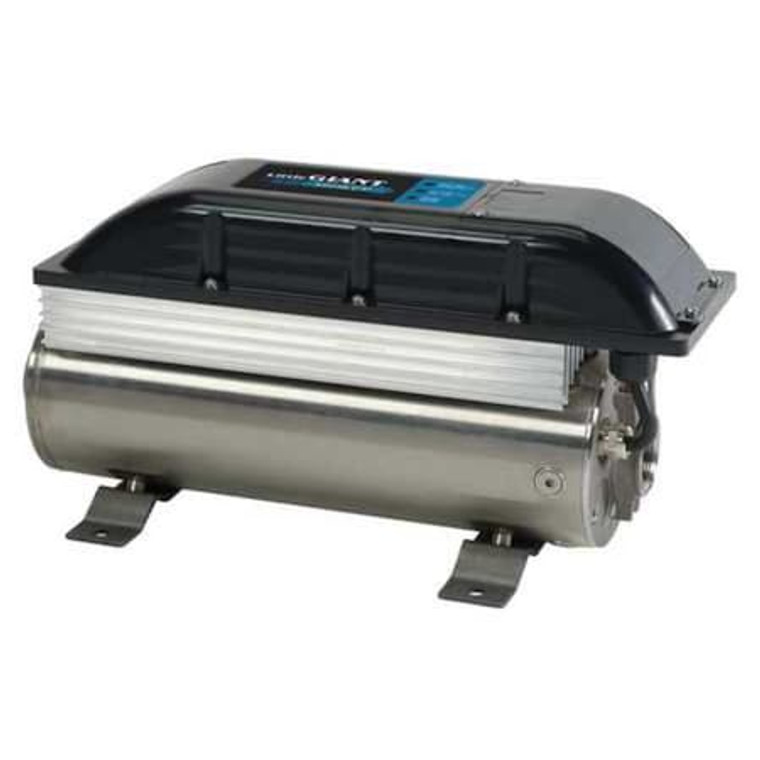

Inline Constant Pressure System, 1 1/5 hp, 230V AC, 1 Phase, 1-1/4 in NPT Inlet Size, 3 Stage - 90411101

Inline Constant Pressure System, 1 1/5 hp, 230V AC, 1 Phase, 1-1/4 in NPT Inlet Size, 3 Stage - 90411101

Little Giant Pump
SKU:
90411101
|
UPC:
10121006089
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Constant Pressure Booster Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 1 1/5 hp, Nameplate Voltage 230V AC, Maximum Flow Rate 46 gpm, Minimum Flow Rate 1 gpm, Maximum Feet of Head 160 ft, Pressure Boost (Maximum) 60 psi, Tank Type Pressure Tank Not Included, Tank Capacity 4 gal., Intake Type NPT, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Motor Enclosure Totally Enclosed Nonventilated, Discharge Type NPT
Additional Information
Country of Origin:
Multiple
Includes - Constant Pressure Booster Pumps:
Tank
Item:
Constant Pressure Booster Pump
HP - Pumps:
1 1/5 hp
Voltage - Pumps:
230V AC
Phase - Pumps:
1
Inlet Size - Pumps:
1-1/4 in NPT
Outlet Size - Pumps:
1-1/4 in NPT
Number of Stages - Pumps:
3
Tank (Gal.) - Pumps:
4
Max. Pressure - Pumps:
70 psi
Housing Material - Pumps:
300 Stainless Steel
NEMA Rating - Pumps:
4
Max. PSI Boost @ 0-10 GPM:
60
Motor Enclosure - Pumps:
Totally Enclosed Nonventilated
Width:
6 in
Tank (Gal.):
4
GPM @ 20 PSI:
42
Max. Liquid Temp.:
140 Degrees F
GPM @ 40 PSI:
32
Hz:
50/60
Includes:
Tank
GPM @ 30 PSI:
37
Best Efficiency GPM @ Head:
15 @ 139 ft
Impeller Type:
Closed Radial
Phase:
Single
Housing Material:
Stainless steel
Manufacturers Warranty Length:
1 yr
Motor Type:
AC
Stages:
3
GPM @ 35 PSI:
34
Max. Pressure:
70 psi
Impeller Material:
Stainless Steel
Motor Enclosure:
Totally Enclosed Nonventilated (TENV)
Max. Dia. Solids:
1/4
Amps:
3.9 A
Suction Lift:
5 ft
Item - Constant Pressure Booster Pumps:
Constant Pressure Booster System
Max. Temp - Pumps:
140 Degrees F
Voltage:
230
HP:
1.2
Best Efficiency GPM @ PSI:
15 @ 60
Height:
9 1/2 in
Duty - Pumps:
Continuous
Wetted Materials:
Stainless Steel
Bearing Type:
Ball
Agency Compliance:
CSA
Motor RPM:
3,450 RPM
Seal Material:
Carbon/Ceramic
Self-Priming:
No
Max. PSI Boost @ 10-20 GPM:
60
Duty:
Continuous
Inlet:
1-1/4";Max. PSI Boost @ 20-30 GPM=43"
GPM @ 15 PSI:
44
Pressure Switch Setting:
50 psi
Max. Case Pressure:
150 psi
GPM @ 25 PSI:
39
Outlet:
1-1/4";Length=19 in"
Motor Ambient Temp. Rating:
50 Degrees C
Overall Length:
18.84 in
Overall Width:
5.72 in
Standards:
CSA Certified
Overall Height:
9.31 in
Seal Type:
Mechanical
Feet of Head (Minimum):
22 ft
Frequency:
60 Hz
Horsepower:
1 1/5 hp
Pumping Application:
Increased and Constant Water Pressure from Water Storage/Cistern Systems, Irrigation and Water Reclamation Systems, Multi-Family Dwellings
Maximum RPM:
3,450 RPM
Impeller Design:
Closed
Solid Diameter (Maximum):
0.25 in
Tank Capacity:
4 gal.
Suction Lift (Maximum):
5 ft
Pump Housing Material:
Stainless Steel
Manufacturer Warranty Length:
1 yr
Compatible Intake Pipe Size:
1 1/4 in
Motor Ambient Temperature (Maximum):
122 Degrees F
System Pressure (Maximum):
70 psi
Compatible Discharge Pipe Size:
1 1/4 in
Maximum Flow Rate:
46 gpm
Mounting Orientation:
Inline
Maximum Feet of Head:
160 ft
Number of Stages:
3
Wetted Material:
Stainless Steel
Discharge Flange Size:
1 1/4 in
Pressure Boost (Maximum):
60 psi
Maximum Media Temperature:
145 Degrees F
Minimum Flow Rate:
1 gpm
Thermal Overload Protection:
Yes
Compatible with Media Type:
Water
For Use With Potable Systems:
Yes
Duty Cycle:
Continuous
Intake Type:
NPT
Priming:
Manual
Nameplate Voltage:
230V AC
Tank Type:
Pressure Tank Not Included
Discharge Type:
NPT
Case Pressure (Maximum):
150 psi
Package Quantity:
1
