In-Line Cabinet Ventilator, 124 CFM, 115 V - 3DPE7
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

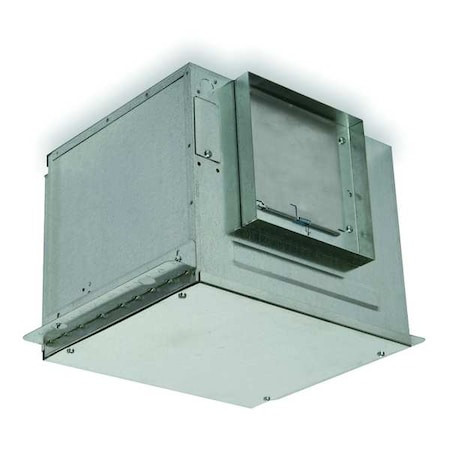

In-Line Cabinet Ventilator, 124 CFM, 115 V - 3DPE7
In-Line Ceiling Exhaust Fan, Discharge Direction Horizontal/Vertical, Duct Diameter Not Applicable, Duct Height 6 in, Duct Width 8 in, Duct Shape Rectangular, Nameplate Voltage 115V AC, Exhaust Airflow @ 0.100 in SP 112 cfm, Exhaust Airflow @ 0.200 in SP 106 cfm, Exhaust Airflow @ 0.250 in SP 102 cfm, Noise Level @ 0.100 in SP @ 5 ft 0.7 sones, Fan Wattage 51 W, Frequency 60 Hz, Full Load Current 0.3 A, Housing Material Steel, Motor Output Power 20 W, Motor Type Permanent Split Capacitor
- Country of Origin:
- United States
- Item:
- In-Line Ceiling Exhaust Fan
- For Use With:
- General Ventilation Applications
- Voltage:
- 115V AC
- Inlet Height:
- 6 in
- Motor Insulation:
- Class B
- Housing Material:
- Steel
- CFM @ 0.100-In. SP:
- 112
- Dimension B:
- 10 5/8 in
- Housing Height:
- 9 in
- CFM @ 0.125-In. SP:
- 110
- Sones @ 0.125-In. SP @ 5 Ft.:
- 0.8
- Wheel Material:
- Polypropylene
- Phase:
- 1
- Inlet Width:
- 12 in
- Singlewide / Doublewide:
- Singlewide
- Motor RPM:
- 950
- Watts:
- 20 W
- Motor Enclosure:
- Open Dripproof
- Dimension A:
- 13 1/4 in
- Insulated:
- Yes
- Hz:
- 60
- Max. Inlet Temp.:
- 104 Degrees F
- Speed Control:
- 48C172
- CFM @ 0.200-In. SP:
- 106
- CFM @ 0.000-In. SP:
- 124
- Number of Speeds:
- 1
- Sones @ 0.100-In. SP @ 5 Ft.:
- 0.8
- Recommended Accessories:
- 48C172, 6WZP2
- Dimension D:
- 8 in
- Dimension F:
- 12 in
- CFM @ 0.375-In. SP:
- 77
- Includes:
- Backdraft Damper, Mounting Brackets
- CFM @ 0.250-In. SP:
- 102
- Full Load Amps:
- 0.62
- Housing Width:
- 10 5/8 in
- Motor Type:
- Permanent Split Capacitor
- Sones @ 0.250-In. SP @ 5 Ft.:
- 0.9
- Discharge Height:
- 6 in
- Housing Length:
- 13 1/4 in
- Mounting Position:
- Horizontal or Vertical
- Dimension E:
- 6 in
- Discharge Width:
- 8 in
- Standards:
- AMCA, CSA, UL/cUL
- Sones @ 0.000-In. SP @ 5 Ft.:
- 0.8
- Green Certification or Other Recognition:
- ENERGY STAR(R) Certified
- Overall Width:
- 10 5/8 in
- Overall Height:
- 9 in
- Vent Design:
- Ducted
- Lighted:
- Without Light
- Wattage:
- 51 W
- Housing Finish:
- Galvanized
- Mounting Orientation:
- Horizontal, Vertical
- Profile Height Family:
- High
- Maximum Airflow:
- 124 cfm
- Overall Depth:
- 13 1/4 in
- Heater:
- Without Heater
- Frequency:
- 60 Hz
- Sensor Type:
- None
- Includes Grill:
- No
- Maximum Noise Level:
- 0.9 sones
- Noise Level @ 0.250 in SP @ 5 ft:
- 0.9 sones
- Discharge Direction:
- Horizontal/Vertical
- Maximum Inlet Temperature:
- 104 Degrees F
- Duct Height:
- 6 in
- Exhaust Airflow @ 0.250 in SP:
- 102 cfm
- Noise Level @ 0.000 in SP @ 5 ft:
- 0.8 sones
- Duct Width:
- 8 in
- Full Load Current:
- 0.3 A
- Profile Width Family:
- Single-Wide
- Noise Level @ 0.125 in SP @ 5 ft:
- 0.8 sones
- Nameplate Voltage:
- 115V AC
- Blower Wheel Material:
- Polypropylene
- Exhaust Airflow @ 0.100 in SP:
- 112 cfm
- Exhaust Airflow @ 0.000 in SP:
- 124 cfm
- Noise Level @ 0.100 in SP @ 5 ft:
- 0.7 sones
- Exhaust Airflow @ 0.200 in SP:
- 106 cfm
- Duct Shape:
- Rectangular
- Blower Wheel Curve:
- Backward
- Motor Speed:
- 950 RPM
- Motor Output Power:
- 20 W
- Duct Diameter:
- Not Applicable
- Fan Wattage:
- 51 W
- Package Quantity:
- 1
