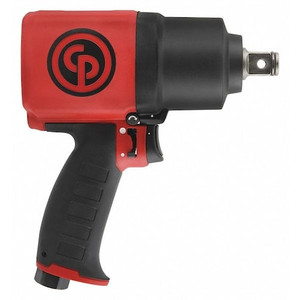

Impact Wrench, 3/4" Square Drive, Pistol - CP7769-6

Impact Wrench, 3/4" Square Drive, Pistol - CP7769-6

Chicago Pneumatic
SKU:
CP7769-6
|
UPC:
15451779627
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Impact Wrench, Power Source Air Powered, Air Consumption 39 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,440 ft-lb, Fastening Torque 1,080 ft-lb, Free Speed 6,500 RPM, Impact Rated Yes, Impact Sound Level 108 dB, Impacts per Minute 1,200, Number of Speed Settings 3, Power to Weight Ratio 173.5 ft-lb/lb, Max. Bolt Capacity 1/2 in
Additional Information
Country of Origin:
Taiwan, Province of China
Item:
Impact Wrench
Free Speed:
6,500 RPM
Air Inlet:
3/8 in NPT
Handle Type:
Pistol Grip
Blows per Minute - Air Tools:
1200
CFM @ Full Load:
39.0
Retainer Type - Air Impacts:
Ring / Thru Hole
Handle Material:
Composite
Features:
360 Degrees Swivel Air Inlet, One-Hand Power Adjustment, One-Hand Reverse System, Variable Speed Trigger
Item - Air Impact Wrenches:
Air Impact Wrench
Drive Size - Air Tools:
3/4 Square"
Max. Torque:
1440 ft.-lb.
Body Style - Air Tools:
Pistol
Anvil Type - Air Impacts:
6 Extended"
Tool Weight:
8.3 lb
Max. Bolt Capacity:
1/2 in
Torque Range:
300 to 1440 ft.-lb.
Anvil Length - Air Impacts:
7.000";Average CFM @ 15 Second Run Time=9.80"
Air Inlet Size - Air Tools:
3/8 NPT"
Min. Hose Size:
1/2 in
Housing Material:
Composite
Required Pressure:
90 psi
Overall Length:
13 3/4 in
Duty Cycle - Air Tools:
General Duty
Retainer Type:
Friction Ring, Through Hole
Air Consumption:
39 cfm
Breakaway Torque:
1,440 ft-lb
Impact Sound Level:
108 dB
Max. Air Pressure:
90 psi
Tool Style:
Compact
Impacts per Minute:
1,200
Drive Type:
Extended
Power to Weight Ratio:
173.5 ft-lb/lb
Extended Anvil Length:
6 in
Fastening Torque:
1,080 ft-lb
Power Source:
Air Powered
Min. Air Pressure:
90 psi
Exhaust Location:
Bottom
Duty Rating:
General Duty
Air Pressure:
90 psi
Vibration Level:
13.0 m/sq sec
Impact Rated:
Yes
Built-In Light:
No
Standards:
EN ISO 11148-6
Drive Size:
3/4 in Square
Number of Speed Settings:
3
Clutch Style:
Twin Hammer
Package Quantity:
1
