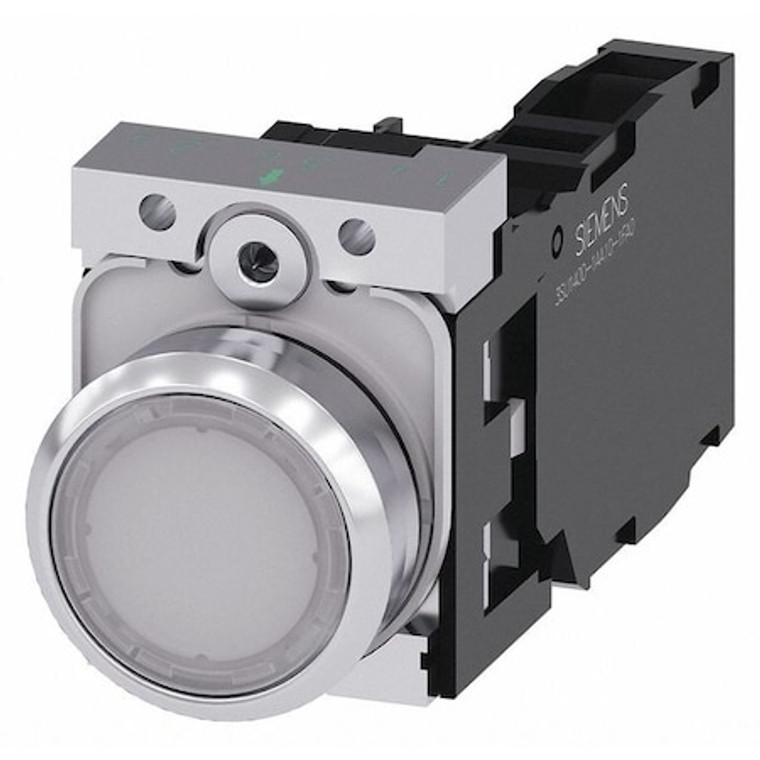

Illuminated Push Button, White, 22mm, LED - 3SU1152-0AB60-1FA0

Illuminated Push Button, White, 22mm, LED - 3SU1152-0AB60-1FA0

Siemens
SKU:
3SU1152-0AB60-1FA0
|
UPC:
804766335112
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Nickel Plated Brass and Zinc Die Cast, Color White, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards CAS, REACH, WEEE (2012/19/EU), Terminal Connection Screw
Additional Information
Country of Origin:
Germany
Item:
Illuminated Push Button
Voltage:
24V AC/DC
Color:
White
Standards:
CAS, REACH, WEEE (2012/19/EU)
NEMA Rating:
1, 12, 2, 3, 3R, 4, 4X
NEMA Contact Rating Designation:
A600/R300
Size:
22 mm
Replacement Lamp:
Not Replaceable
Terminal Connection:
Screw
Basic Material:
Metal
Lamp Type:
LED
Number of Operators:
1
Head Material:
Plastic
Contact Rating:
10A @ 600V AC, 5A @ 600V DC
Lamp Module Type:
Full Voltage
Lamp Module Voltage:
24V AC/DC
Legend:
Not Applicable
Bezel:
Nickel Plated Brass and Zinc Die Cast
Action:
Momentary
Type of Operator:
Flush Button
Lamp Voltage:
24V AC/DC
IP Rating:
IP66, IP67, IP69, IP69K
Contact Form:
1NO/1NC
Contact Type:
1NO/1NC
Features:
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type:
Push Button Operators
Type:
Illuminated pushbuttons
Application:
Complete unit
Bezel Material:
Metal
Contact configuration:
36526
Insulation:
IP66, IP67, IP69(IP69K)
Special Features:
Yes
Actuator:
Button, flat
Operating Temperature:
-25°C to 70°C
Operating cycles:
3000000
Mounting:
front plate mounting
Voltage rating:
5
Environmental Conditions:
-25
Connection:
screw-type terminals
Indicator:
Light source
Number of Poles:
1
Operator Voltage Rating - Maximum:
500 V
Operating Temperature - Maximum:
158 Degrees F
Maintained Action Release:
Not Applicable
Push Button Style:
Flush
Mechanical Operating Durability:
3.00 x 10^6
NEMA Enclosure Rating:
1, 12, 2, 3, 3R, 4, 4X
Mushroom Head Diameter:
Not Applicable
Panel Cutout Diameter:
22 mm
Legend Background Color:
Not Applicable
Legend Color:
Not Applicable
Hazardous Location Specification:
Not Applicable
Overall Width:
2 in
Overall Depth:
4 in
Operator Illumination:
Illuminated
Operating Temperature - Minimum:
-13 Degrees F
Lamp Voltage - Maximum:
24 V AC/DC
Series:
3SU
Manufacturer Warranty Length:
1 yr
Number of Indicator Lights:
0
Operator Material:
Metal
Overall Height:
1.4 in
DC Contact Rating:
5 A @ 600 V
Head Color:
White
AC Contact Rating:
10 A @ 600 V
Package Quantity:
1
