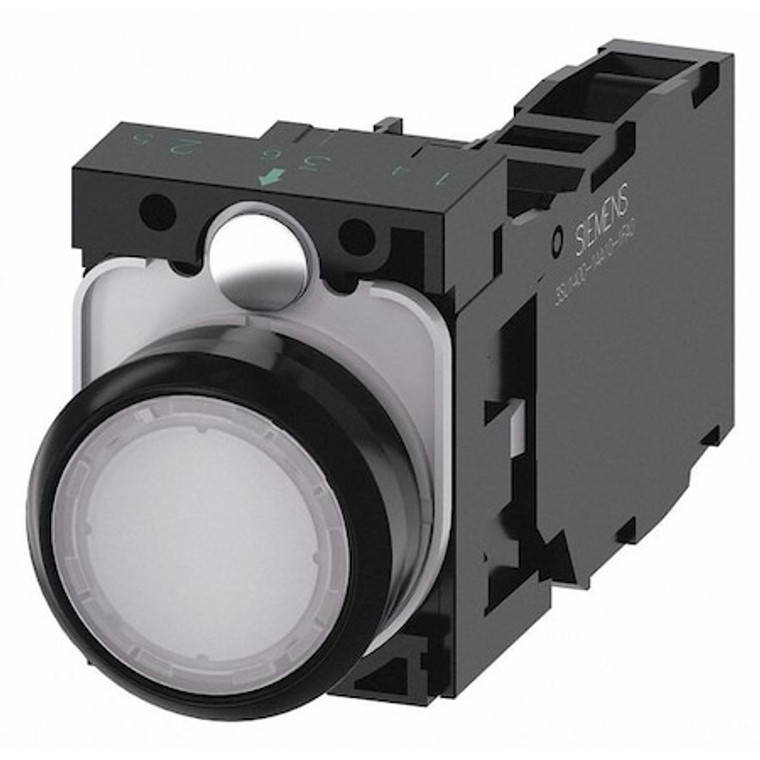

Illuminated Push Button, White, 22mm, LED - 3SU1102-0AB60-1FA0

Illuminated Push Button, White, 22mm, LED - 3SU1102-0AB60-1FA0

Siemens
SKU:
3SU1102-0AB60-1FA0
|
UPC:
804766335273
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color White, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards CAS, REACH, WEEE (2012/19/EU), Terminal Connection Screw
Additional Information
Country of Origin:
Germany
Item:
Illuminated Push Button
Voltage:
24V AC/DC
Color:
White
Contact Type:
1NO/1NC
Lamp Module Voltage:
24V AC/DC
Head Material:
Plastic
Terminal Connection:
Screw
IP Rating:
IP66, IP67, IP69, IP69K
Bezel:
Plastic
Contact Rating:
10A @ 600V AC, 5A @ 600V DC
Number of Operators:
1
Lamp Type:
LED
Lamp Module Type:
Full Voltage
NEMA Rating:
1, 12, 2, 3, 3R, 4, 4X
Size:
22 mm
Basic Material:
Plastic
Lamp Voltage:
24V AC/DC
Replacement Lamp:
Not Replaceable
Action:
Momentary
Contact Form:
1NO/1NC
Legend:
Not Applicable
Standards:
CAS, REACH, WEEE (2012/19/EU)
Type of Operator:
Flush Button
NEMA Contact Rating Designation:
A600/R300
Features:
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type:
Push Button Operators
Bezel Material:
Plastic
Type:
Illuminated pushbuttons
Application:
Complete unit
Contact configuration:
36526
Mounting:
front plate mounting
Insulation:
IP66, IP67, IP69(IP69K)
Connection:
screw-type terminals
Number of Poles:
1
Special Features:
Yes
Operating Temperature:
-25°C to 70°C
Indicator:
Light source
Voltage rating:
5
Operating cycles:
3000000
Actuator:
Button, flat
Environmental Conditions:
-25
Operator Voltage Rating - Maximum:
500 V
Operator Material:
Plastic
Operator Illumination:
Illuminated
Head Color:
White
Lamp Voltage - Maximum:
24 V AC/DC
Legend Background Color:
Not Applicable
AC Contact Rating:
10 A @ 600 V
Overall Height:
1.3 in
Number of Indicator Lights:
0
Push Button Style:
Flush
Overall Depth:
4 in
Series:
3SU
Operating Temperature - Maximum:
158 Degrees F
Overall Width:
2 in
Operating Temperature - Minimum:
-13 Degrees F
Manufacturer Warranty Length:
1 yr
Maintained Action Release:
Not Applicable
NEMA Enclosure Rating:
1, 12, 2, 3, 3R, 4, 4X
Mechanical Operating Durability:
3.00 x 10^6
Panel Cutout Diameter:
22 mm
Hazardous Location Specification:
Not Applicable
Mushroom Head Diameter:
Not Applicable
DC Contact Rating:
5 A @ 600 V
Legend Color:
Not Applicable
Package Quantity:
1
