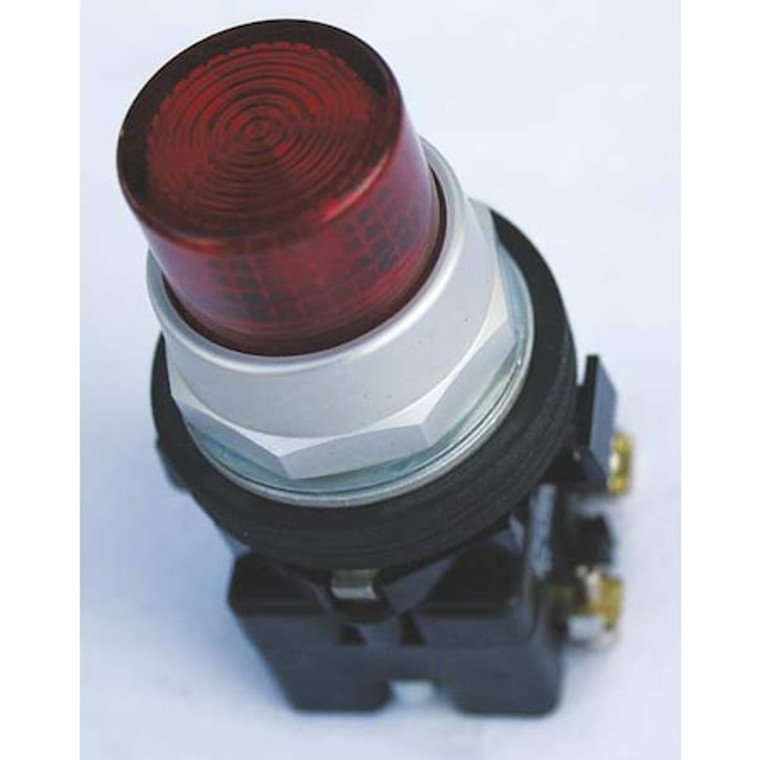

Illuminated Push Button Operator, 30 mm, Red - HT8GBRF7

Illuminated Push Button Operator, 30 mm, Red - HT8GBRF7

Eaton
SKU:
HT8GBRF7
|
UPC:
782113576886
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Extended Push Button, 30 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Plastic, Bezel Material Chrome, Color Red, NEMA Rating 12, 3R, 4X, IP Rating IP65, Legend Not Applicable, Standards CE, CSA, UL Listed, Includes Lamp, Features Allen Bradley Compatible
Additional Information
Country of Origin:
Dominican Republic
Item:
Extended Push Button
Basic Material:
Metal
Features:
Allen Bradley Compatible
Legend:
Not Applicable
Lamp Voltage:
120V AC
Type of Operator:
Extended Button
Lamp Type:
LED
Color:
Red
Number of Operators:
1
NEMA Rating:
12, 3R, 4X
Series:
HT800
Bezel:
Metal
Size:
30 mm
Standards:
CE, CSA, UL Listed
Action:
Momentary
Head Material:
Plastic
Bezel Material:
Chrome
Lamp Module Type:
Full Voltage
IP Rating:
IP65
Lamp Module Voltage:
120V AC
Terminal Connection:
Screw Clamp
Type:
30.5 mm, Watertight/Oiltight
Application:
Pushbutton
Legend Color:
Not Applicable
Operating mode:
Momentary
Enclosure:
NEMA 4X
Product Width:
2 in
Actuator function:
Momentary
Certifications:
CSA Certified
Operator material:
Plastic
Actuator:
Extended
Special features:
HT800 series
Light unit type:
LED, full voltage
Lens Color:
Red
Actuator Color:
Red
Product Height:
1.4 in
Light unit voltage:
120 Vac/dc
Illumination:
Illuminated
Product Length/Depth:
6.65 in
Product Name:
Eaton HT800 pushbutton
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Number of Indicator Lights:
1
Lamp Voltage - Maximum:
24 V AC/DC
Overall Width:
2 in
Operator Material:
Polymer
Operating Temperature - Minimum:
10 Degrees F
Overall Height:
1.4 in
Legend Background Color:
Not Applicable
Hazardous Location Specification:
Not Rated
Mushroom Head Diameter:
Not Applicable
Operator Illumination:
Illuminated
Head Color:
Red
Operating Temperature - Maximum:
140 Degrees F
Panel Cutout Diameter:
30 mm
Product Type:
Push Button Operators
Overall Depth:
6.65 in
Maintained Action Release:
Not Applicable
NEMA Enclosure Rating:
12, 13, 3, 3R, 4, 4X
Manufacturer Warranty Length:
1 yr
Push Button Style:
Extended
Package Quantity:
1
