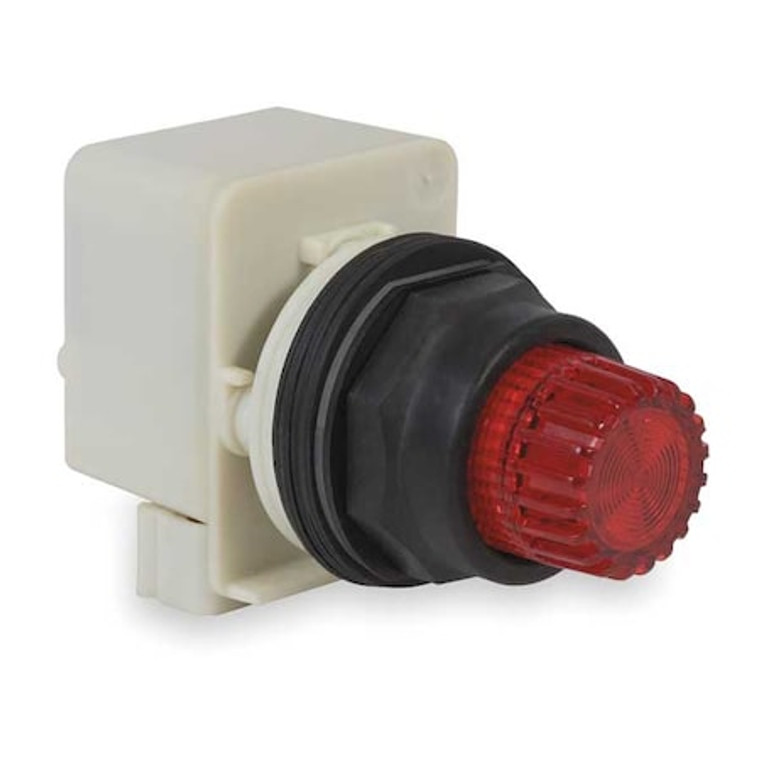

Illuminated Push Button Operator, 30 mm, Red - 9001SK2L1R

Illuminated Push Button Operator, 30 mm, Red - 9001SK2L1R

Schneider Electric
SKU:
9001SK2L1R
|
UPC:
785901852155
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Extended Push Button, 30 mm, Momentary, Type of Operator No Guard, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Red, NEMA Rating 12, 3R, 4X, IP Rating IP64, Legend Not Applicable, Standards CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR, Includes Incandescent Lamp, Features Snap-Fit Assembly
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
6V AC
NEMA Rating:
12, 3R, 4X
Type of Operator:
No Guard
Lamp Type:
LED
Color:
Red
Legend:
Not Applicable
Bezel:
Plastic
Number of Operators:
1
Item:
Extended Push Button
Bezel Material:
Plastic
Terminal Connection:
Screw Clamp
Lamp Module Voltage:
120V AC
Basic Material:
Plastic
Standards:
CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR
IP Rating:
IP64
Lamp Module Type:
Transformer
Replacement Lamp:
4VCW2
Features:
Snap-Fit Assembly
Series:
9001SK
Light Source:
incandescent bulb
Product Certifications:
CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
Device Short Name:
9001SK
Mounting Diameter:
30 mm
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Shape Of Signaling Unit Head:
octagonal
Supply Frequency:
50 to 60 Hz
Product Or Component Type:
head for illuminated push-button
Ip Degree Of Protection:
IP64
Cap/Operator Or Lens Colour:
red
Contacts Type And Composition:
without contact block
Operator Profile:
projecting
Bulb Base:
BA 9s
Light Block Supply:
via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz, via integral transformer
[Us] Rated Supply Voltage:
110 to 120 V
Legend Color:
Not Applicable
Push Button Style:
Extended
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights:
1
Operator Material:
Plastic
Overall Height:
1.62 in
Operator Illumination:
Illuminated
Overall Width:
2.13 in
Hazardous Location Specification:
Not Rated
Overall Depth:
3.07 in
Mushroom Head Diameter:
Not Applicable
Panel Cutout Diameter:
30 mm
Head Color:
Red
Maintained Action Release:
Not Applicable
Manufacturer Warranty Length:
18 mo
Product Type:
Push Button Operators
Resistance Properties:
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Lamp Voltage - Maximum:
120 V AC
Legend Background Color:
Not Applicable
Package Quantity:
1
