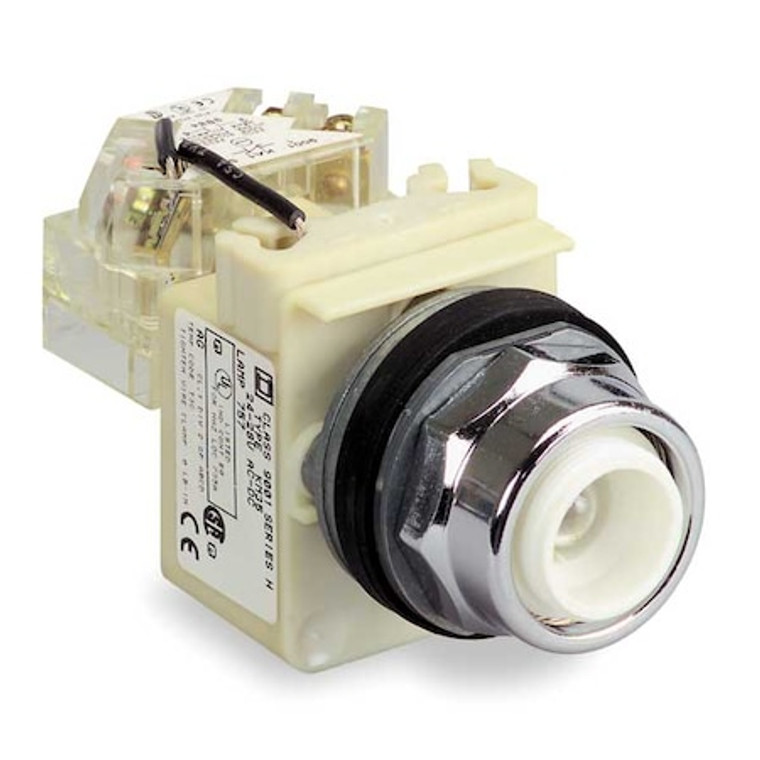

Illuminated Push Button Operator, 30 mm, No Cap - 9001K1L1

Illuminated Push Button Operator, 30 mm, No Cap - 9001K1L1

Schneider Electric
SKU:
9001K1L1
|
UPC:
785901005605
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Flush Push Button, 30 mm, Momentary, Type of Operator Full Guarded Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color No Cap, NEMA Rating 12, 3R, 4, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR, Includes Incandescent lamp, Features Withstands Harsh Environments, Visually Distinct at a Distance
Additional Information
Country of Origin:
Mexico
Item:
Flush Push Button
Basic Material:
Metal
Features:
Withstands Harsh Environments, Visually Distinct at a Distance
Legend:
Not Applicable
Type of Operator:
Full Guarded Button
Lamp Voltage:
6V AC
Color:
No Cap
Lamp Type:
LED
Number of Operators:
1
NEMA Rating:
12, 3R, 4
Series:
9001K
Size:
30 mm
Bezel:
Metal
Standards:
CE, CSA LR25490 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR
Head Material:
Metal
Action:
Momentary
Bezel Material:
Metal
Lamp Module Type:
Transformer
Replacement Lamp:
4VCW2
Terminal Connection:
Screw Clamp
Lamp Module Voltage:
120V AC
IP Rating:
IP66
Legend Color:
Not Applicable
Light Block Supply:
via integral transformer, via transformer
Cap/Operator Or Lens Colour:
without cap
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Product Certifications:
CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR || CE
Contacts Type And Composition:
without contact block
Supply Frequency:
50 to 60 Hz
Bulb Base:
BA 9s
Operator Profile:
flush
Device Short Name:
K
Device Presentation:
basic element
Mounting Diameter:
30 mm
Product Or Component Type:
head for illuminated push-button
[Us] Rated Supply Voltage:
110 to 120 V
Light Source:
incandescent bulb
[Ie] Rated Operational Current:
10 A, AC-15 || 10 A, DC-13
Operator Additional Information:
plastic guard
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4
Manufacturer Warranty Length:
18 mo
Number of Indicator Lights:
1
Operator Material:
Metal
Legend Background Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Resistance Properties:
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Overall Height:
1.62 in
Lamp Voltage - Maximum:
120 V AC
Overall Depth:
3.07 in
Product Type:
Push Button Operators
Mushroom Head Diameter:
Not Applicable
Push Button Style:
Flush
Head Color:
Not Applicable
Hazardous Location Specification:
Not Rated
Maintained Action Release:
Not Applicable
Overall Width:
2.13 in
Operator Illumination:
Illuminated
Package Quantity:
1
