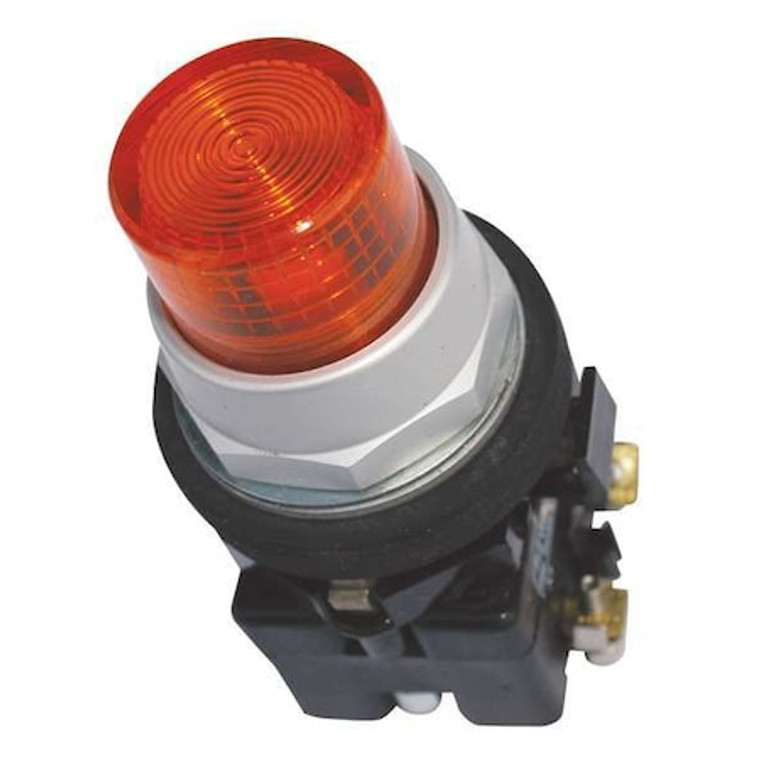

Illuminated Push Button Operator, 30 mm, Amber - HT8GBAF7

Illuminated Push Button Operator, 30 mm, Amber - HT8GBAF7

Eaton
SKU:
HT8GBAF7
|
UPC:
782113577098
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Extended Push Button, 30 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Plastic, Bezel Material Chrome, Color Amber, NEMA Rating 12, 3R, 4X, IP Rating IP65, Legend Not Applicable, Standards CSA, UL Listed, Includes Lamp, Features Allen Bradley Compatible
Additional Information
Country of Origin:
Dominican Republic
Item:
Extended Push Button
Basic Material:
Metal
Features:
Allen Bradley Compatible
Legend:
Not Applicable
Lamp Voltage:
120V AC
Type of Operator:
Extended Button
Color:
Amber
Lamp Type:
LED
Number of Operators:
1
NEMA Rating:
12, 3R, 4X
Series:
HT800
Size:
30 mm
Bezel:
Metal
Standards:
CSA, UL Listed
Action:
Momentary
Head Material:
Plastic
Bezel Material:
Chrome
IP Rating:
IP65
Terminal Connection:
Screw Clamp
Lamp Module Voltage:
120V AC
Lamp Module Type:
Full Voltage
Type:
30.5 mm, Watertight/Oiltight
Legend Color:
Not Applicable
Application:
Pushbutton
Actuator function:
Momentary
Light unit type:
LED, full voltage
Actuator:
Extended
Operator material:
Plastic
Actuator Color:
Amber
Product Height:
1.4 in
Operating mode:
Momentary
Product Width:
2 in
Product Length/Depth:
6.65 in
Certifications:
CSA Certified
Light unit voltage:
120 Vac/dc
Illumination:
Illuminated
Special features:
HT800 series
Enclosure:
NEMA 13
Lens Color:
Amber
Product Name:
Eaton HT800 pushbutton
Panel Cutout Diameter:
30 mm
Maintained Action Release:
Not Applicable
Operator Material:
Polymer
Operating Temperature - Maximum:
140 Degrees F
Push Button Style:
Extended
Head Color:
Amber
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Operating Temperature - Minimum:
10 Degrees F
NEMA Enclosure Rating:
12, 13, 3, 3R, 4, 4X
Legend Background Color:
Not Applicable
Manufacturer Warranty Length:
1 yr
Lamp Voltage - Maximum:
48 V AC/DC
Mushroom Head Diameter:
Not Applicable
Product Type:
Push Button Operators
Overall Width:
2 in
Overall Height:
1.4 in
Overall Depth:
6.65 in
Hazardous Location Specification:
Not Rated
Number of Indicator Lights:
1
Operator Illumination:
Illuminated
Package Quantity:
1
