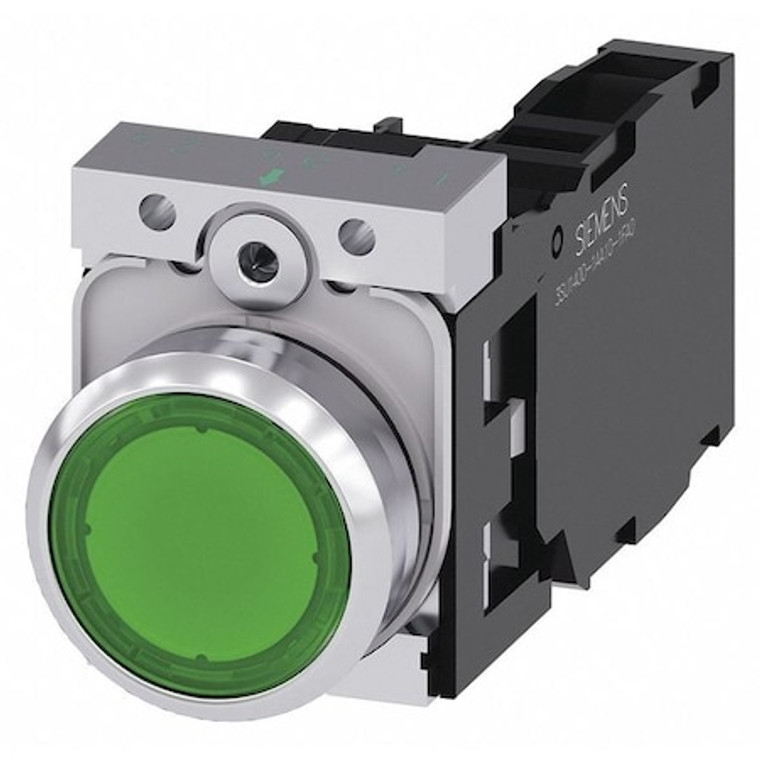

Illuminated Push Button, Green, 22mm, LED - 3SU1152-0AB40-1FA0

Illuminated Push Button, Green, 22mm, LED - 3SU1152-0AB40-1FA0

Siemens
SKU:
3SU1152-0AB40-1FA0
|
UPC:
804766335129
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Nickel Plated Brass and Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards CAS, REACH, WEEE (2012/19/EU), Terminal Connection Screw
Additional Information
Country of Origin:
Germany
Item:
Illuminated Push Button
Voltage:
24V AC/DC
Color:
Green
Replacement Lamp:
Not Replaceable
Contact Type:
1NO/1NC
NEMA Rating:
1, 12, 2, 3, 3R, 4, 4X
Lamp Module Voltage:
24V AC/DC
Lamp Module Type:
Full Voltage
NEMA Contact Rating Designation:
A600/R300
Standards:
CAS, REACH, WEEE (2012/19/EU)
Contact Form:
1NO/1NC
Lamp Voltage:
24V AC/DC
Bezel:
Nickel Plated Brass and Zinc Die Cast
Head Material:
Plastic
IP Rating:
IP66, IP67, IP69, IP69K
Lamp Type:
LED
Size:
22 mm
Basic Material:
Metal
Number of Operators:
1
Terminal Connection:
Screw
Action:
Momentary
Contact Rating:
10A @ 600V AC, 5A @ 600V DC
Type of Operator:
Flush Button
Legend:
Not Applicable
Features:
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type:
Push Button Operators
Type:
Illuminated pushbuttons
Application:
Complete unit
Bezel Material:
Metal
Operating Temperature:
-25°C to 70°C
Actuator:
Button, flat
Voltage rating:
5
Mounting:
front plate mounting
Number of Poles:
1
Insulation:
IP66, IP67, IP69(IP69K)
Indicator:
Light source
Connection:
screw-type terminals
Environmental Conditions:
-25
Contact configuration:
36526
Operating cycles:
3000000
Special Features:
Yes
Series:
3SU
Legend Color:
Not Applicable
Mushroom Head Diameter:
Not Applicable
Operator Illumination:
Illuminated
Overall Width:
2 in
Hazardous Location Specification:
Not Applicable
NEMA Enclosure Rating:
1, 12, 2, 3, 3R, 4, 4X
Operator Voltage Rating - Maximum:
500 V
Overall Height:
1.35 in
Lamp Voltage - Maximum:
24 V AC/DC
Number of Indicator Lights:
0
Manufacturer Warranty Length:
1 yr
Mechanical Operating Durability:
3.00 x 10^6
Operating Temperature - Minimum:
-13 Degrees F
Head Color:
Green
Overall Depth:
4 in
Legend Background Color:
Not Applicable
DC Contact Rating:
5 A @ 600 V
Maintained Action Release:
Not Applicable
Push Button Style:
Flush
Operating Temperature - Maximum:
158 Degrees F
AC Contact Rating:
10 A @ 600 V
Panel Cutout Diameter:
22 mm
Operator Material:
Metal
Package Quantity:
1
