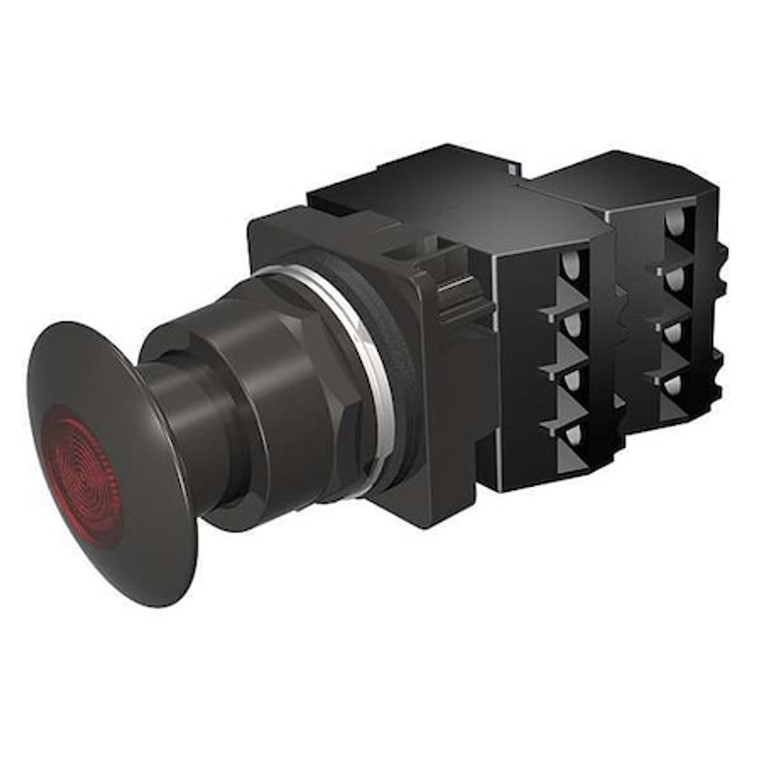

Illuminated Push Button, 30 mm, 2NC, Red - 52BP2J2G

Illuminated Push Button, 30 mm, 2NC, Red - 52BP2J2G

Siemens
SKU:
52BP2J2G
|
UPC:
887621496241
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:
6V AC
Lamp Type:
Incandescent
Type of Operator:
44mm Mushroom Head
Contact Form:
2NC
Color:
Red
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Mushroom Head Push Button
Bezel Material:
Epoxy Coated Zinc Die Cast
Replacement Lamp:
Mfr. No. 52AABN
NEMA Contact Rating Designation:
A600/P600
Lamp Module Type:
Transformer
Voltage:
480V AC
Basic Material:
Epoxy
Contact Type:
2NC
Terminal Connection:
Pressure Plate
Standards:
CSA, REACH, UL Listed
Lamp Module Voltage:
480V AC
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
52
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
Not Rated
Product Type:
Push Button Operators
Panel Cutout Diameter:
30 mm
Operator Material:
Epoxy
Manufacturer Warranty Length:
1 yr
Legend Color:
Not Applicable
Operator Illumination:
Illuminated
Head Color:
Red
Operating Temperature - Minimum:
31 Degrees F
Operator Voltage Rating - Maximum:
600 V AC
Maintained Action Release:
Push/Pull
Mushroom Head Diameter:
44.45 mm
Number of Indicator Lights:
0
Mechanical Operating Durability:
3.00 x 10^5
Overall Width:
2.15 in
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
NEMA Enclosure Rating:
4X
Legend Background Color:
Not Applicable
Overall Height:
4.49 in
Operating Temperature - Maximum:
158 Degrees F
Lamp Voltage - Maximum:
480 V
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Push Button Style:
Mushroom Head
Package Quantity:
1
