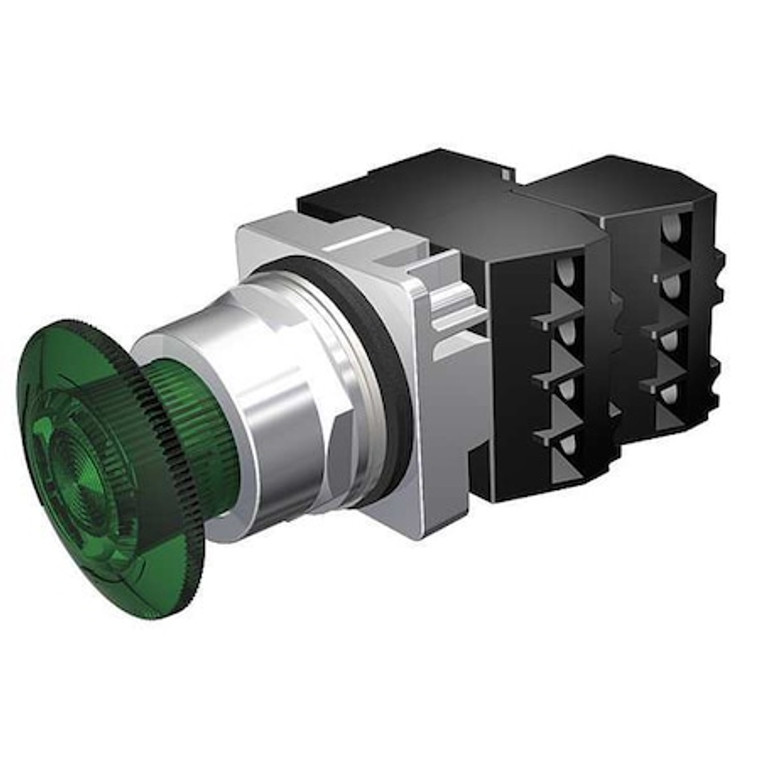

Illuminated Push Button, 30 mm, 2NC, Green - 52PR8HSGB

Name: Illuminated Push Button, 30 mm, 2NC, Green - 52PR8HSGB
Brand: Siemens
SKU: 52PR8HSGB
Price: 167.89 USD
Availability: InStock

Siemens

SKU:

52PR8HSGB

UPC:

887621502232

Availability:

In Stock

(No reviews yet)

Mushroom Head Push Button, 30 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Action:: Maintained
Size:: 30 mm
Head Material:: Plastic
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:: 6V AC
Lamp Type:: LED
Type of Operator:: 45mm Mushroom Head
Color:: Green
Contact Form:: 2NC
Bezel:: Chrome Plated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Item:: Mushroom Head Push Button
Contact Rating:: 10A @ 600V AC
Bezel Material:: Chrome Plated Zinc Die Cast
Contact Type:: 2NC
Lamp Module Voltage:: 240V AC
Standards:: CSA, REACH, UL Listed
Voltage:: 240V AC
Replacement Lamp:: Mfr. No. 52AEB3
Lamp Module Type:: Transformer
Basic Material:: Metal
NEMA Contact Rating Designation:: A600/P600
Terminal Connection:: Pressure Plate
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
AC Contact Rating:: 10 A @ 600 V
Series:: 52
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
DC Contact Rating:: Not Rated
Product Type:: Push Button Operators
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Operating Temperature - Minimum:: 31 Degrees F
Mushroom Head Diameter:: 44.45 mm
Panel Cutout Diameter:: 30 mm
Head Color:: Green
Operator Illumination:: Illuminated
Number of Indicator Lights:: 0
Push Button Style:: Mushroom Head
Maintained Action Release:: Twist
Legend Background Color:: Not Applicable
Operator Voltage Rating - Maximum:: 600 V AC
Operator Material:: Metal
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Operating Temperature - Maximum:: 158 Degrees F
Legend Color:: Not Applicable
Lamp Voltage - Maximum:: 240 V
Manufacturer Warranty Length:: 1 yr
Mechanical Operating Durability:: 3.00 x 10^5
NEMA Enclosure Rating:: 1, 12, 13, 3, 3R, 4, 4X
Package Quantity:: 1
