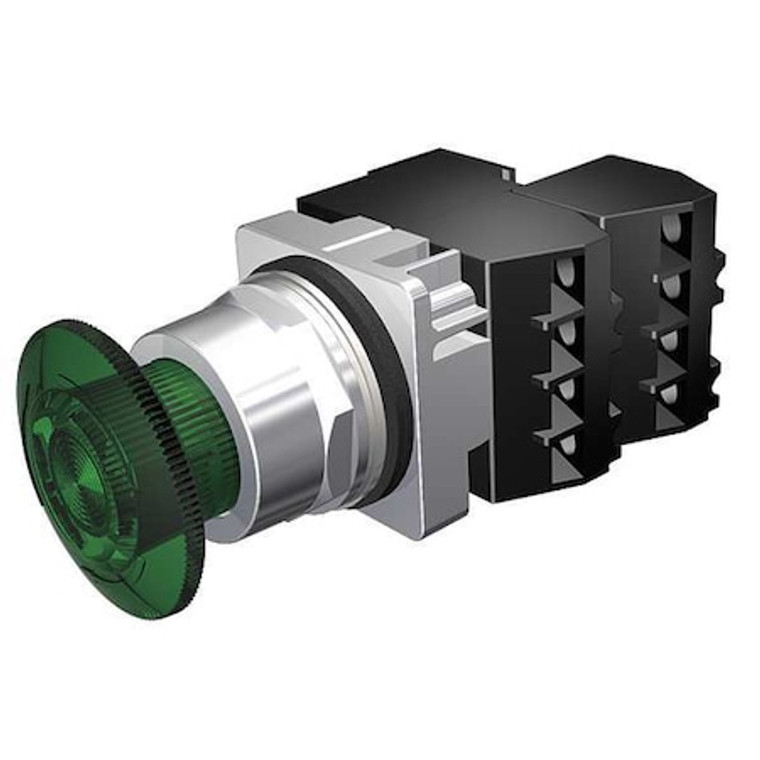

Illuminated Push Button, 30 mm, 2NC, Green - 52PR8HSG

Illuminated Push Button, 30 mm, 2NC, Green - 52PR8HSG

Siemens
SKU:
52PR8HSG
|
UPC:
887621502225
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
6V AC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Type:
Incandescent
Type of Operator:
45mm Mushroom Head
Contact Form:
2NC
Color:
Green
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Chrome Plated Zinc Die Cast
Contact Type:
2NC
Replacement Lamp:
Mfr. No. 52AABN
Lamp Module Voltage:
240V AC
NEMA Contact Rating Designation:
A600/P600
Basic Material:
Metal
Voltage:
240V AC
Standards:
CSA, REACH, UL Listed
Lamp Module Type:
Transformer
Terminal Connection:
Pressure Plate
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
DC Contact Rating:
Not Rated
AC Contact Rating:
10 A @ 600 V
Series:
52
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:
Push Button Operators
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Mechanical Operating Durability:
3.00 x 10^5
Operator Illumination:
Illuminated
Lamp Voltage - Maximum:
240 V
Legend Background Color:
Not Applicable
Operator Voltage Rating - Maximum:
600 V AC
Number of Indicator Lights:
0
Operating Temperature - Maximum:
158 Degrees F
Operator Material:
Metal
Manufacturer Warranty Length:
1 yr
Push Button Style:
Mushroom Head
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Legend Color:
Not Applicable
Operating Temperature - Minimum:
31 Degrees F
Head Color:
Green
Maintained Action Release:
Twist
Panel Cutout Diameter:
30 mm
Mushroom Head Diameter:
44.45 mm
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Package Quantity:
1
