Illuminated Push Button, 30 mm, 2NC, Green - 52PR8ESGB

Illuminated Push Button, 30 mm, 2NC, Green - 52PR8ESGB

Siemens
SKU:
52PR8ESGB
|
UPC:
887621502119
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

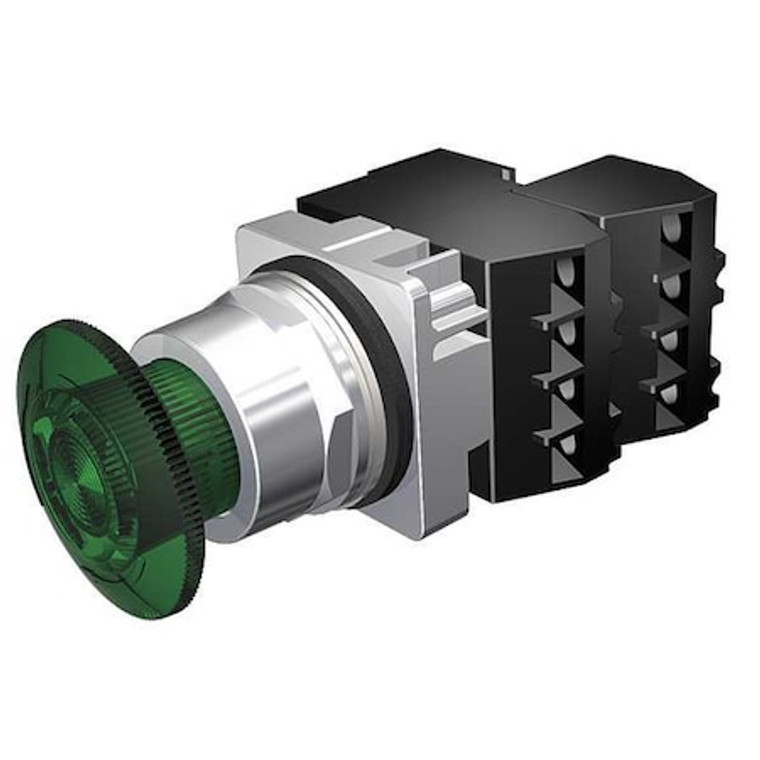

Mushroom Head Push Button, 30 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
120V AC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Type:
LED
Type of Operator:
45mm Mushroom Head
Contact Form:
2NC
Color:
Green
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Mushroom Head Push Button
Bezel Material:
Chrome Plated Zinc Die Cast
Contact Type:
2NC
Lamp Module Type:
Full Voltage
Terminal Connection:
Pressure Plate
Standards:
CSA, REACH, UL Listed
NEMA Contact Rating Designation:
A600/P600
Voltage:
120V AC
Lamp Module Voltage:
120V AC
Replacement Lamp:
Mfr. No. 52AEE3
Basic Material:
Metal
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
DC Contact Rating:
Not Rated
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
52
AC Contact Rating:
10 A @ 600 V
Product Type:
Push Button Operators
Operating Temperature - Minimum:
31 Degrees F
Push Button Style:
Mushroom Head
Operator Illumination:
Illuminated
Mushroom Head Diameter:
44.45 mm
Mechanical Operating Durability:
3.00 x 10^5
Panel Cutout Diameter:
30 mm
Legend Background Color:
Not Applicable
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Head Color:
Green
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage - Maximum:
120 V
Operator Material:
Metal
Legend Color:
Not Applicable
Manufacturer Warranty Length:
1 yr
Number of Indicator Lights:
0
Maintained Action Release:
Twist
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Operator Voltage Rating - Maximum:
600 V AC
Operating Temperature - Maximum:
158 Degrees F
Package Quantity:
1
