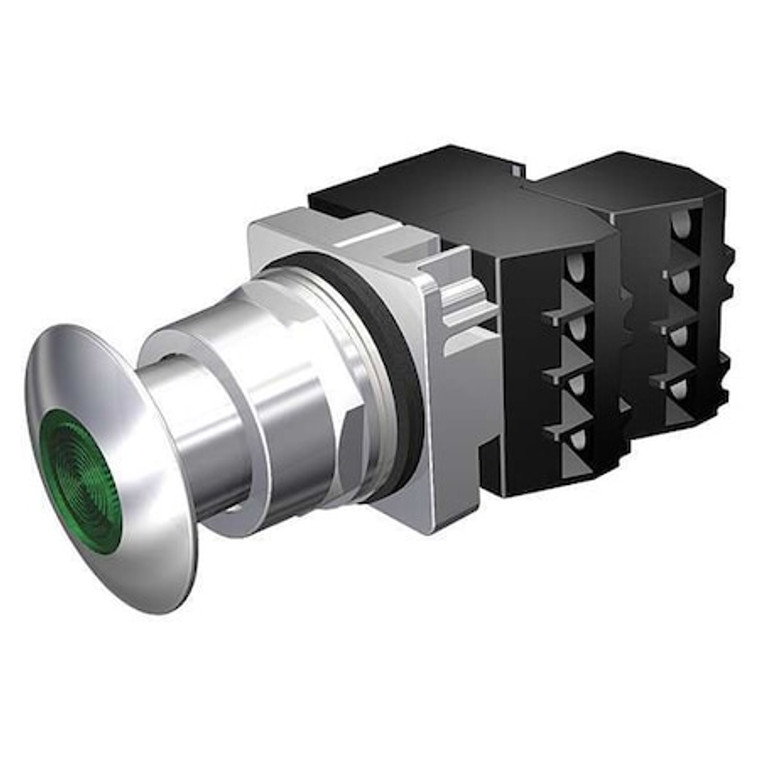

Illuminated Push Button, 30 mm, 2NC, Green - 52PP2H3GB

Illuminated Push Button, 30 mm, 2NC, Green - 52PP2H3GB

Siemens
SKU:
52PP2H3GB
|
UPC:
887621501792
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:
6V AC
Lamp Type:
LED
Type of Operator:
44mm Mushroom Head
Contact Form:
2NC
Color:
Green
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Chrome
Voltage:
240V AC
Replacement Lamp:
Mfr. No. 52AEB3
Contact Type:
2NC
Lamp Module Type:
Transformer
Lamp Module Voltage:
240V AC
NEMA Contact Rating Designation:
A600/P600
Terminal Connection:
Pressure Plate
Standards:
CSA, REACH, UL Listed
Basic Material:
Metal
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
DC Contact Rating:
Not Rated
AC Contact Rating:
10 A @ 600 V
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
52
Product Type:
Push Button Operators
Overall Width:
2.15 in
Head Color:
Green
Operator Material:
Metal
Maintained Action Release:
Push/Pull
Mechanical Operating Durability:
3.00 x 10^5
Mushroom Head Diameter:
44.45 mm
Operator Illumination:
Illuminated
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Overall Height:
4.49 in
Lamp Voltage - Maximum:
240 V AC
Push Button Style:
Mushroom Head
Resistance Properties:
Oil and Grease Resistant, Watertight
Operating Temperature - Maximum:
158 Degrees F
Operator Voltage Rating - Maximum:
600 V AC
Legend Background Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Manufacturer Warranty Length:
1 yr
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Operating Temperature - Minimum:
31 Degrees F
Legend Color:
Not Applicable
Number of Indicator Lights:
0
Package Quantity:
1
