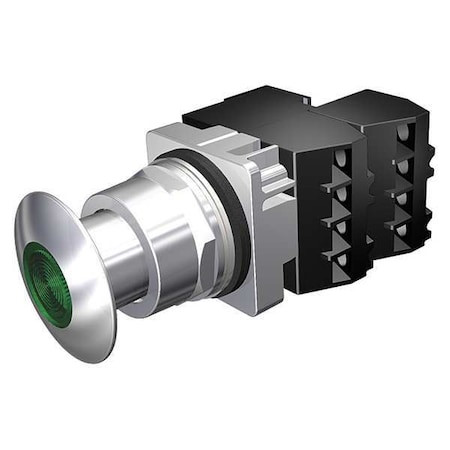

Illuminated Push Button, 30 mm, 2NC, Green - 52PP2D3GB

Illuminated Push Button, 30 mm, 2NC, Green - 52PP2D3GB

Siemens
SKU:
52PP2D3GB
|
UPC:
887621501433
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:
24V AC/DC
Type of Operator:
44mm Mushroom Head
Lamp Type:
LED
Contact Form:
2NC
Color:
Green
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Chrome
Replacement Lamp:
Mfr. No. 52AED3
Contact Type:
2NC
Terminal Connection:
Pressure Plate
Lamp Module Voltage:
24V AC/DC
Basic Material:
Metal
Standards:
CSA, REACH, UL Listed
Lamp Module Type:
Full Voltage
Voltage:
24V AC/DC
NEMA Contact Rating Designation:
A600/P600
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
Not Rated
Series:
52
Product Type:
Push Button Operators
Overall Width:
2.15 in
Legend Color:
Not Applicable
Manufacturer Warranty Length:
1 yr
Panel Cutout Diameter:
30 mm
Mushroom Head Diameter:
44.45 mm
Mechanical Operating Durability:
3.00 x 10^5
Head Color:
Green
Operator Illumination:
Illuminated
Operator Material:
Metal
Operating Temperature - Minimum:
31 Degrees F
Maintained Action Release:
Push/Pull
Legend Background Color:
Not Applicable
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Operator Voltage Rating - Maximum:
600 V AC
Number of Indicator Lights:
0
Resistance Properties:
Oil and Grease Resistant, Watertight
Overall Height:
4.49 in
Lamp Voltage - Maximum:
24 V AC/DC
Operating Temperature - Maximum:
158 Degrees F
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Push Button Style:
Mushroom Head
Package Quantity:
1
