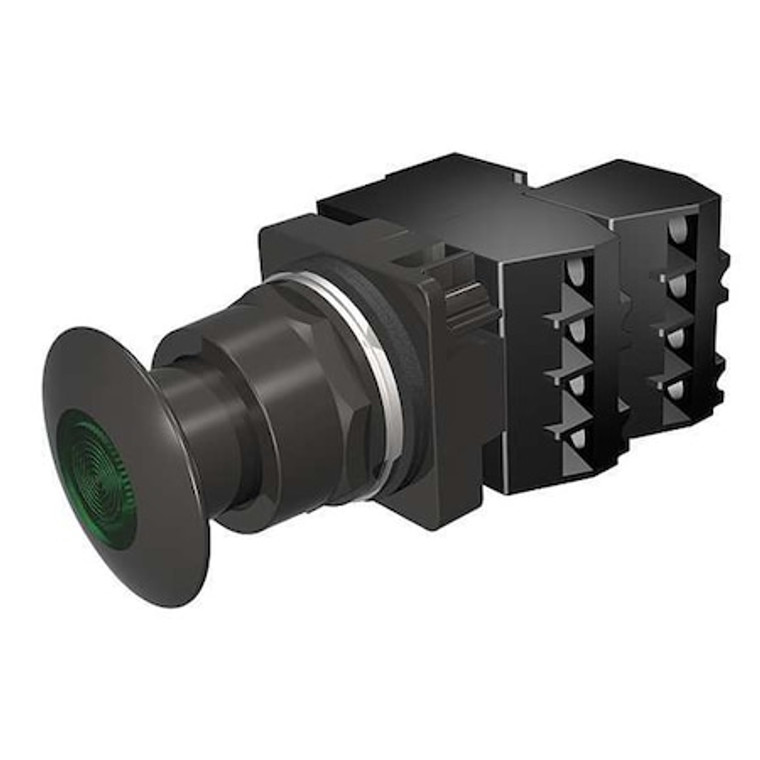

Illuminated Push Button, 30 mm, 2NC, Green - 52BP2H3GB

Name: Illuminated Push Button, 30 mm, 2NC, Green - 52BP2H3GB
Brand: Siemens
SKU: 52BP2H3GB
Price: 144.89 USD
Availability: InStock

Siemens

SKU:

52BP2H3GB

UPC:

887621496159

Availability:

In Stock

(No reviews yet)

Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Action:: Maintained
Size:: 30 mm
Head Material:: Metal
Lamp Voltage:: 6V AC
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Type:: LED
Type of Operator:: 44mm Mushroom Head
Color:: Green
Contact Form:: 2NC
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Contact Rating:: 10A @ 600V AC
Item:: Mushroom Head Push Button
Bezel Material:: Epoxy Coated Zinc Die Cast
NEMA Contact Rating Designation:: A600/P600
Voltage:: 240V AC
Terminal Connection:: Pressure Plate
Replacement Lamp:: Mfr. No. 52AEB3
Contact Type:: 2NC
Standards:: CSA, REACH, UL Listed
Lamp Module Voltage:: 240V AC
Lamp Module Type:: Transformer
Basic Material:: Epoxy
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:: 52
DC Contact Rating:: Not Rated
AC Contact Rating:: 10 A @ 600 V
Product Type:: Push Button Operators
Operator Material:: Epoxy
Mushroom Head Diameter:: 44.45 mm
Manufacturer Warranty Length:: 1 yr
Operator Voltage Rating - Maximum:: 600 V AC
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Overall Height:: 4.49 in
Operating Temperature - Maximum:: 158 Degrees F
Maintained Action Release:: Push/Pull
NEMA Enclosure Rating:: 4X
Head Color:: Green
Legend Color:: Not Applicable
Operator Illumination:: Illuminated
Mechanical Operating Durability:: 3.00 x 10^5
Overall Width:: 2.15 in
Number of Indicator Lights:: 0
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Push Button Style:: Mushroom Head
Panel Cutout Diameter:: 30 mm
Lamp Voltage - Maximum:: 240 V
Legend Background Color:: Not Applicable
Operating Temperature - Minimum:: 31 Degrees F
Package Quantity:: 1
