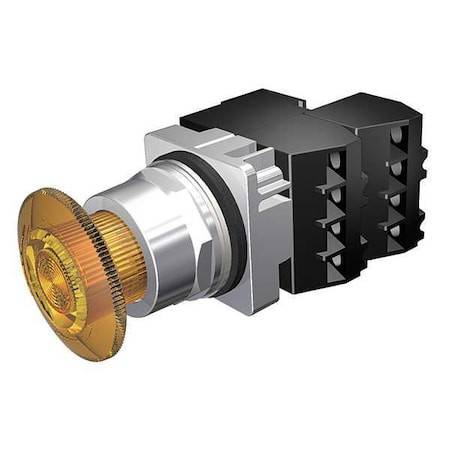

Illuminated Push Button, 30 mm, 2NC, Amber - 52PR8HTGB

Illuminated Push Button, 30 mm, 2NC, Amber - 52PR8HTGB

Siemens
SKU:
52PR8HTGB
|
UPC:
887621502256
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Size:
30 mm
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Action:
Maintained
Lamp Voltage:
6V AC
Type of Operator:
45mm Mushroom Head
Lamp Type:
LED
Head Material:
Plastic
Contact Form:
2NC
Legend:
Not Applicable
Number of Operators:
1
Bezel:
Chrome Plated Zinc Die Cast
Color:
Amber
Lamp Module Voltage:
240V AC
Bezel Material:
Chrome Plated Zinc Die Cast
Terminal Connection:
Pressure Plate
Lamp Module Type:
Transformer
Basic Material:
Metal
Standards:
CSA, REACH, UL Listed
Replacement Lamp:
Mfr. No. 52AEB4
NEMA Contact Rating Designation:
A600/P600
Voltage:
240V AC
Contact Type:
2NC
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Series:
52
DC Contact Rating:
Not Rated
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
Product Type:
Push Button Operators
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Legend Background Color:
Not Applicable
Panel Cutout Diameter:
30 mm
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Legend Color:
Not Applicable
Operator Material:
Metal
Operating Temperature - Minimum:
31 Degrees F
Number of Indicator Lights:
0
Push Button Style:
Mushroom Head
Operating Temperature - Maximum:
158 Degrees F
Maintained Action Release:
Twist
Lamp Voltage - Maximum:
240 V
Manufacturer Warranty Length:
1 yr
Mechanical Operating Durability:
3.00 x 10^5
Head Color:
Amber
Mushroom Head Diameter:
44.45 mm
Operator Illumination:
Illuminated
Operator Voltage Rating - Maximum:
600 V AC
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Package Quantity:
1
