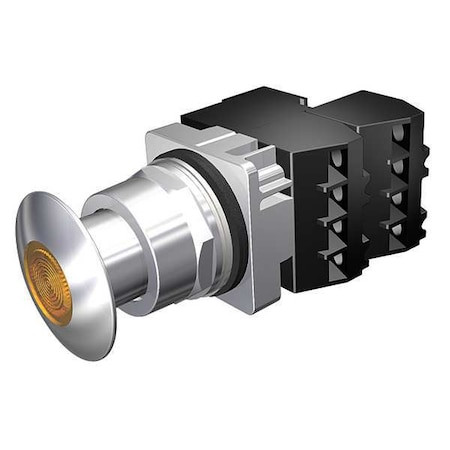

Illuminated Push Button, 30 mm, 2NC, Amber - 52PP2D9G

Illuminated Push Button, 30 mm, 2NC, Amber - 52PP2D9G

Siemens
SKU:
52PP2D9G
|
UPC:
887621501464
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Size:
30 mm
Lamp Voltage:
24V AC/DC
Action:
Maintained
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Type:
Incandescent
Type of Operator:
44mm Mushroom Head
Head Material:
Metal
Contact Form:
2NC
Legend:
Not Applicable
Number of Operators:
1
Bezel:
Chrome Plated Zinc Die Cast
Color:
Amber
Lamp Module Voltage:
24V AC/DC
Bezel Material:
Chrome
Contact Type:
2NC
Lamp Module Type:
Full Voltage
Standards:
CSA, REACH, UL Listed
Voltage:
24V AC/DC
Basic Material:
Metal
NEMA Contact Rating Designation:
A600/P600
Terminal Connection:
Pressure Plate
Replacement Lamp:
Mfr. No. 52AADN
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Series:
52
AC Contact Rating:
10 A @ 600 V
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
DC Contact Rating:
Not Rated
Product Type:
Push Button Operators
Mushroom Head Diameter:
44.45 mm
Mechanical Operating Durability:
3.00 x 10^5
Maintained Action Release:
Push/Pull
Overall Height:
4.49 in
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Legend Background Color:
Not Applicable
Head Color:
Amber
Resistance Properties:
Oil and Grease Resistant, Watertight
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Manufacturer Warranty Length:
1 yr
Operating Temperature - Maximum:
158 Degrees F
Operator Illumination:
Illuminated
Overall Width:
2.15 in
Operator Material:
Metal
Push Button Style:
Mushroom Head
Operating Temperature - Minimum:
31 Degrees F
Legend Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Lamp Voltage - Maximum:
24 V AC/DC
Number of Indicator Lights:
0
Operator Voltage Rating - Maximum:
600 V AC
Package Quantity:
1
