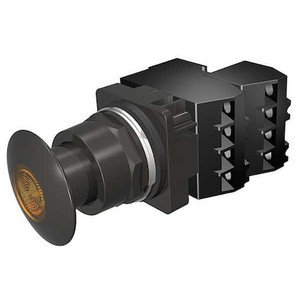

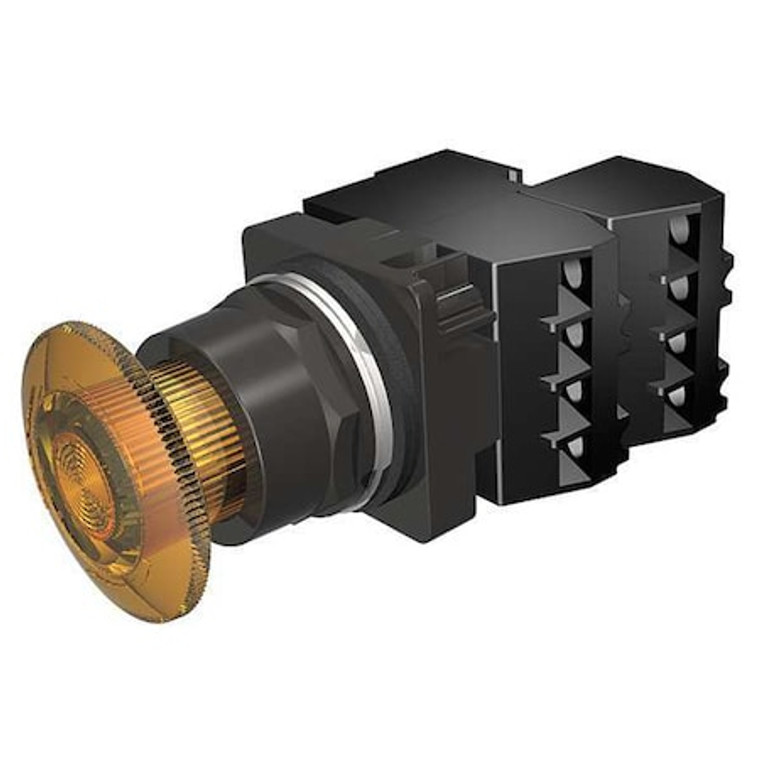

Illuminated Push Button, 30 mm, 2NC, Amber - 52BR8GTGB

Illuminated Push Button, 30 mm, 2NC, Amber - 52BR8GTGB

Siemens
SKU:
52BR8GTGB
|
UPC:
887621496531
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Plastic
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:
6V AC
Type of Operator:
45mm Mushroom Head
Lamp Type:
LED
Color:
Amber
Contact Form:
2NC
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Mushroom Head Push Button
Bezel Material:
Epoxy Coated Metal
Basic Material:
Epoxy
NEMA Contact Rating Designation:
A600/P600
Contact Type:
2NC
Lamp Module Type:
Transformer
Voltage:
120V AC
Standards:
CSA, REACH, UL Listed
Terminal Connection:
Pressure Plate
Lamp Module Voltage:
120V AC
Replacement Lamp:
Mfr. No. 52AEB4
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
DC Contact Rating:
Not Rated
AC Contact Rating:
10 A @ 600 V
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
52
Product Type:
Push Button Operators
Push Button Style:
Mushroom Head
Operator Voltage Rating - Maximum:
600 V AC
Operating Temperature - Minimum:
31 Degrees F
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Head Color:
Amber
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Operating Temperature - Maximum:
158 Degrees F
Panel Cutout Diameter:
30 mm
Resistance Properties:
Corrosion Resistant
Legend Background Color:
Not Applicable
Operator Illumination:
Illuminated
Number of Indicator Lights:
0
Legend Color:
Not Applicable
Operator Material:
Epoxy Coated Metal
Manufacturer Warranty Length:
1 yr
Mechanical Operating Durability:
3.00 x 10^5
Maintained Action Release:
Twist
Lamp Voltage - Maximum:
120 V AC
Mushroom Head Diameter:
45.47 mm
Package Quantity:
1
