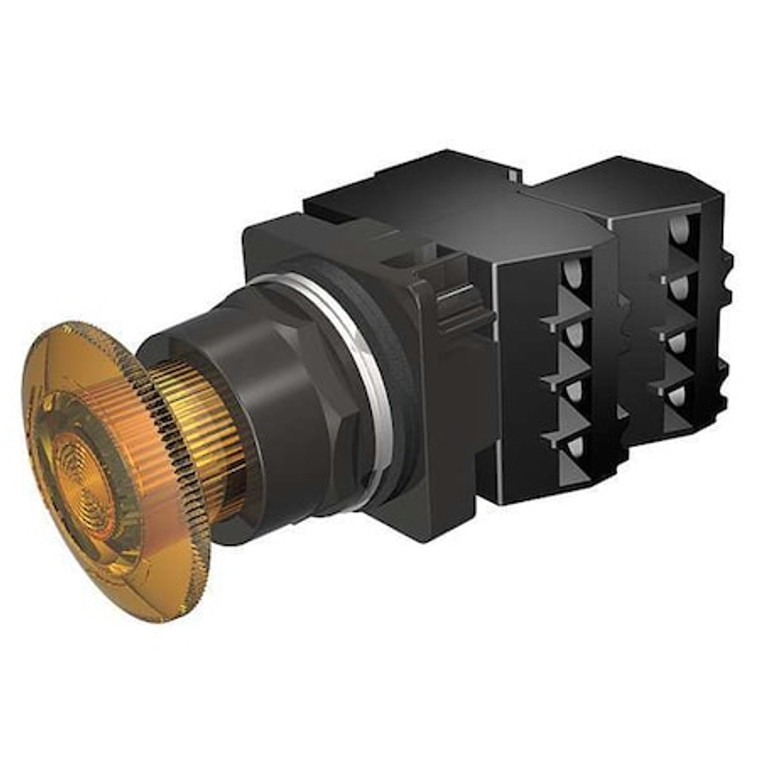

Illuminated Push Button, 30 mm, 2NC, Amber - 52BR8ETG

Illuminated Push Button, 30 mm, 2NC, Amber - 52BR8ETG

Siemens
SKU:
52BR8ETG
|
UPC:
887621496463
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
120V AC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
45mm Mushroom Head
Lamp Type:
Incandescent
Contact Form:
2NC
Color:
Amber
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Epoxy Coated Metal
Replacement Lamp:
Mfr. No. TEL/120MB
Terminal Connection:
Pressure Plate
Basic Material:
Epoxy
NEMA Contact Rating Designation:
A600/P600
Lamp Module Type:
Full Voltage
Lamp Module Voltage:
120V AC
Voltage:
120V AC/DC
Standards:
CSA, REACH, UL Listed
Contact Type:
2NC
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
DC Contact Rating:
Not Rated
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
52
AC Contact Rating:
10 A @ 600 V
Product Type:
Push Button Operators
Operator Voltage Rating - Maximum:
600 V AC
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Legend Background Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Mechanical Operating Durability:
3.00 x 10^5
Lamp Voltage - Maximum:
120 V AC/DC
Mushroom Head Diameter:
45.47 mm
Legend Color:
Not Applicable
Manufacturer Warranty Length:
1 yr
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Resistance Properties:
Corrosion Resistant
Operator Illumination:
Illuminated
Head Color:
Amber
Number of Indicator Lights:
0
Maintained Action Release:
Twist
Operator Material:
Epoxy Coated Metal
Operating Temperature - Maximum:
158 Degrees F
Operating Temperature - Minimum:
31 Degrees F
Push Button Style:
Mushroom Head
Package Quantity:
1
