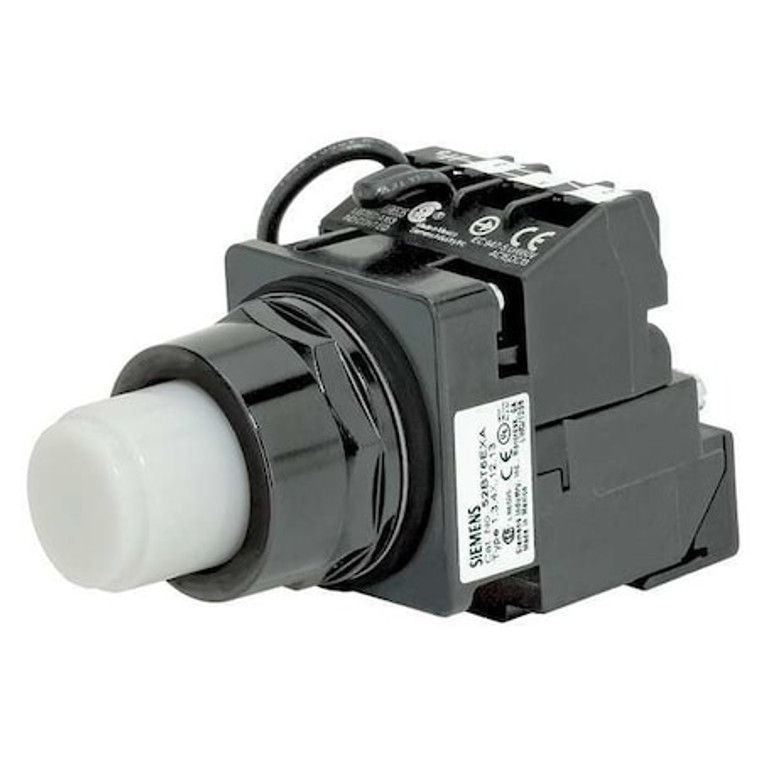

Illuminated Push Button, 30 mm, 1NO, White - 52BT6GBK

Illuminated Push Button, 30 mm, 1NO, White - 52BT6GBK

Siemens
SKU:
52BT6GBK
|
UPC:
887621497859
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Black Epoxy Coated Zinc Die Cast, Color White, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Item:
Illuminated Push Button
Contact Rating:
10A @ 600V AC
Size:
30 mm
Action:
Maintained/Momentary
Lamp Voltage:
6V AC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Type:
Incandescent
Type of Operator:
Round Button
Head Material:
Plastic
Contact Form:
1NO
Legend:
Not Applicable
Number of Operators:
1
Bezel:
Black Epoxy Coated Zinc Die Cast
Color:
White
Lamp Module Voltage:
120V AC
Bezel Material:
Epoxy Coated Zinc Die Cast
Terminal Connection:
Pressure Plate
Basic Material:
Epoxy
Contact Type:
1NO
Standards:
CSA, REACH, UL Listed
Replacement Lamp:
Mfr. No. 52AABN
NEMA Contact Rating Designation:
A600/P600
Lamp Module Type:
Transformer
Voltage:
120V AC
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Series:
52
DC Contact Rating:
Not Rated
AC Contact Rating:
10 A @ 600 V
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:
Push Button Operators
Operating Temperature - Maximum:
158 Degrees F
Operator Illumination:
Illuminated
NEMA Enclosure Rating:
4X
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Legend Background Color:
Not Applicable
Operating Temperature - Minimum:
31 Degrees F
Manufacturer Warranty Length:
1 yr
Legend Color:
Not Applicable
Push Button Style:
Extended
Operator Voltage Rating - Maximum:
600 V AC
Operator Material:
Epoxy
Mechanical Operating Durability:
3.00 x 10^5
Overall Height:
4.24 in
Head Color:
White
Number of Indicator Lights:
0
Mushroom Head Diameter:
Not Applicable
Maintained Action Release:
Push/Pull
Lamp Voltage - Maximum:
120 V
Overall Width:
2.15 in
Panel Cutout Diameter:
30 mm
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Package Quantity:
1
