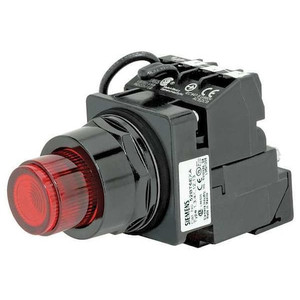

Illuminated Push Button, 30 mm, 1NO, Red - 52BT6J2KB

Illuminated Push Button, 30 mm, 1NO, Red - 52BT6J2KB

Siemens
SKU:
52BT6J2KB
|
UPC:
887621500542
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Black Epoxy Coated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Item:
Illuminated Push Button
Contact Rating:
10A @ 600V AC
Size:
30 mm
Lamp Voltage:
6V AC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Action:
Maintained/Momentary
Type of Operator:
Round Button
Lamp Type:
LED
Head Material:
Plastic
Contact Form:
1NO
Legend:
Not Applicable
Number of Operators:
1
Bezel:
Black Epoxy Coated Zinc Die Cast
Color:
Red
Lamp Module Voltage:
480V AC
Bezel Material:
Epoxy Coated Zinc Die Cast
Replacement Lamp:
Mfr. No. 52AEB2
Standards:
CSA, REACH, UL Listed
NEMA Contact Rating Designation:
A600/P600
Voltage:
480V AC
Contact Type:
1NO
Terminal Connection:
Pressure Plate
Lamp Module Type:
Transformer
Basic Material:
Epoxy
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
52
DC Contact Rating:
Not Rated
AC Contact Rating:
10 A @ 600 V
Product Type:
Push Button Operators
Operating Temperature - Maximum:
158 Degrees F
NEMA Enclosure Rating:
4X
Overall Width:
2.15 in
Manufacturer Warranty Length:
1 yr
Operating Temperature - Minimum:
31 Degrees F
Lamp Voltage - Maximum:
480 V
Maintained Action Release:
Push/Pull
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Mushroom Head Diameter:
Not Applicable
Operator Material:
Epoxy
Push Button Style:
Extended
Panel Cutout Diameter:
30 mm
Operator Illumination:
Illuminated
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Head Color:
Red
Overall Height:
4.24 in
Mechanical Operating Durability:
3.00 x 10^5
Operator Voltage Rating - Maximum:
600 V AC
Legend Color:
Not Applicable
Number of Indicator Lights:
0
Legend Background Color:
Not Applicable
Package Quantity:
1
