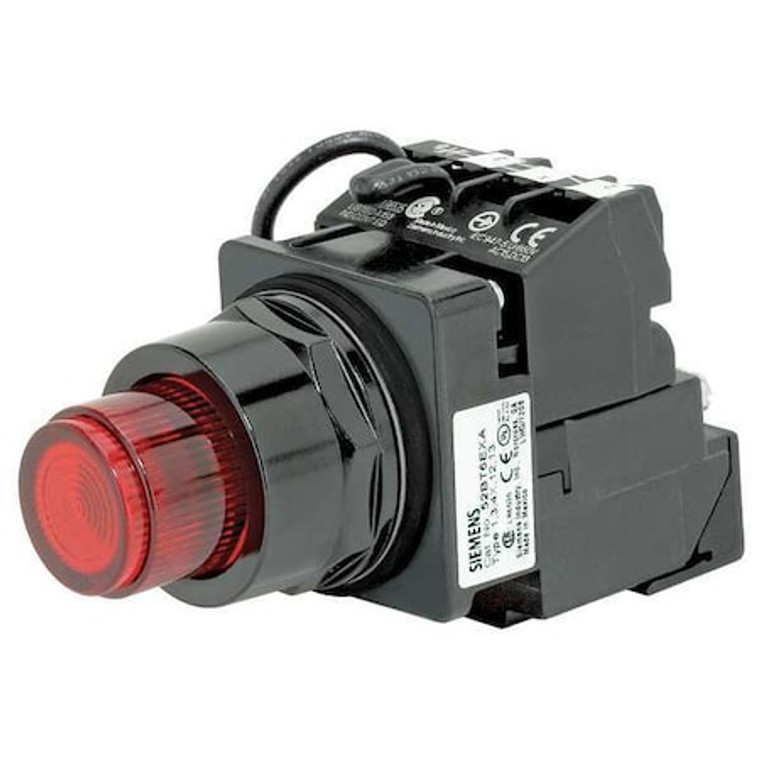

Illuminated Push Button, 30 mm, 1NO, Red - 52BT6H2KB

Illuminated Push Button, 30 mm, 1NO, Red - 52BT6H2KB

Siemens
SKU:
52BT6H2KB
|
UPC:
887621497965
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Black Epoxy Coated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained/Momentary
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
6V AC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
Round Button
Lamp Type:
LED
Color:
Red
Contact Form:
1NO
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Illuminated Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Epoxy Coated Zinc Die Cast
Lamp Module Voltage:
240V AC
Lamp Module Type:
Transformer
Replacement Lamp:
Mfr. No. 52AEB2
Standards:
CSA, REACH, UL Listed
Voltage:
240V AC
Terminal Connection:
Pressure Plate
Contact Type:
1NO
NEMA Contact Rating Designation:
A600/P600
Basic Material:
Epoxy
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
Series:
52
DC Contact Rating:
Not Rated
Product Type:
Push Button Operators
Overall Height:
4.24 in
Mechanical Operating Durability:
3.00 x 10^5
Operator Material:
Epoxy
Operating Temperature - Minimum:
31 Degrees F
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Operator Voltage Rating - Maximum:
600 V AC
Operator Illumination:
Illuminated
Head Color:
Red
Push Button Style:
Extended
Overall Width:
2.15 in
Manufacturer Warranty Length:
1 yr
Maintained Action Release:
Push/Pull
NEMA Enclosure Rating:
4X
Legend Background Color:
Not Applicable
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Lamp Voltage - Maximum:
240 V
Legend Color:
Not Applicable
Number of Indicator Lights:
0
Operating Temperature - Maximum:
158 Degrees F
Panel Cutout Diameter:
30 mm
Mushroom Head Diameter:
Not Applicable
Package Quantity:
1
