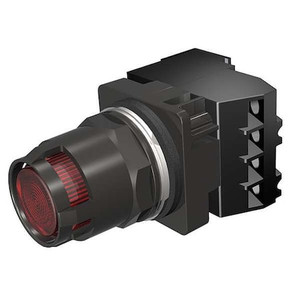

Illuminated Push Button, 30 mm, 1NO, Red - 52BT6D2K

Illuminated Push Button, 30 mm, 1NO, Red - 52BT6D2K

Siemens
SKU:
52BT6D2K
|
UPC:
887621496753
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Black Epoxy Coated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained/Momentary
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
24V AC/DC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
Round Button
Lamp Type:
Incandescent
Color:
Red
Contact Form:
1NO
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Illuminated Push Button
Bezel Material:
Epoxy Coated Zinc Die Cast
NEMA Contact Rating Designation:
A600/P600
Voltage:
24V AC/DC
Terminal Connection:
Pressure Plate
Contact Type:
1NO
Replacement Lamp:
Mfr. No. 52AADN
Lamp Module Voltage:
24V AC/DC
Lamp Module Type:
Full Voltage
Standards:
CSA, REACH, UL Listed
Basic Material:
Epoxy
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
Not Rated
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
Class 52
Product Type:
Push Button Operators
Operator Illumination:
Illuminated
Operating Temperature - Minimum:
31 Degrees F
Operating Temperature - Maximum:
158 Degrees F
Operator Voltage Rating - Maximum:
600 V AC
Head Color:
Red
Overall Width:
2.15 in
Maintained Action Release:
Push/Pull
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Number of Indicator Lights:
0
Legend Background Color:
Not Applicable
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Legend Color:
Not Applicable
Push Button Style:
Extended
Mushroom Head Diameter:
Not Applicable
Mechanical Operating Durability:
3.00 x 10^5
Lamp Voltage - Maximum:
24 V
Manufacturer Warranty Length:
1 yr
Panel Cutout Diameter:
30 mm
NEMA Enclosure Rating:
4X
Overall Height:
4.24 in
Operator Material:
Epoxy
Package Quantity:
1
