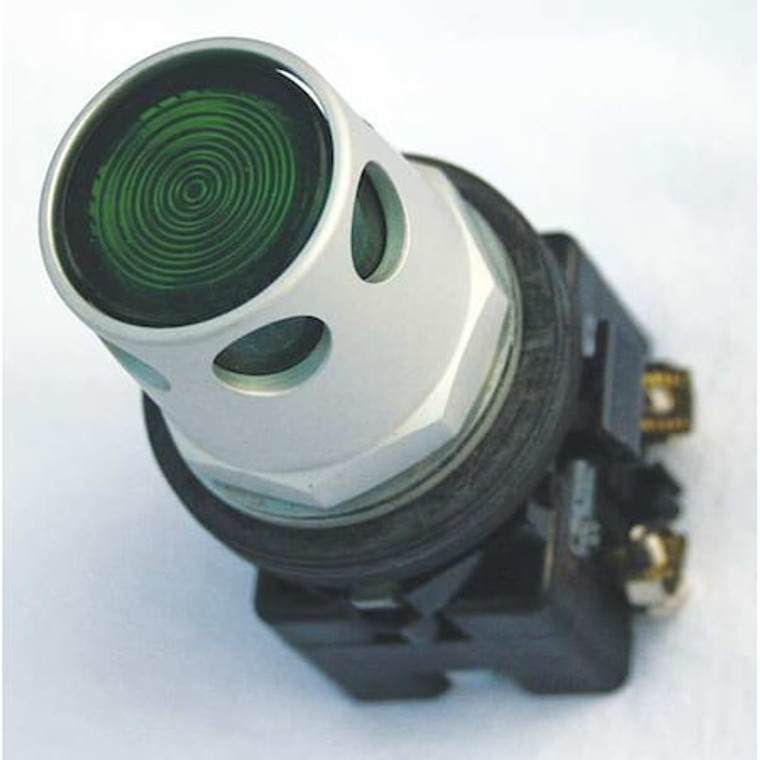

Illuminated Push Button, 30 mm, 1NO, Green - HT8GDGAF7

Illuminated Push Button, 30 mm, 1NO, Green - HT8GDGAF7

Eaton
SKU:
HT8GDGAF7
|
UPC:
782116302802
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Anodized Aluminum/Mounting Rings, Color Green, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible, Includes Lamp
Additional Information
Country of Origin:
Dominican Republic
Action:
Momentary
Size:
30 mm
Head Material:
Metal
Lamp Voltage:
120V AC
NEMA Rating:
12, 13, 3, 3R, 4, 4X
Lamp Type:
LED
Type of Operator:
Round Extended Guarded Button
Contact Form:
1NO
Color:
Green
Bezel:
Anodized Aluminum/Mounting Rings
Number of Operators:
1
Contact Rating:
10A @ 600V AC/DC
Item:
Illuminated Push Button
Bezel Material:
Chrome
Lamp Module Voltage:
120V AC
IP Rating:
IP65
Terminal Connection:
Screw Clamp
NEMA Contact Rating Designation:
A600/P600
Standards:
CE, CSA, UL Listed
Voltage:
120v
Lamp Module Type:
Full Voltage
Replacement Lamp:
Mfr. No. HT8LEDGF7
Contact Type:
1NO
Basic Material:
Metal
AC Contact Rating:
10 A @ 600 V
Type:
30.5 mm, Watertight/Oiltight-HT800
DC Contact Rating:
5 A @ 250 V
Features:
Allen-Bradley Pushbutton Panel Compatible
Series:
HT800
Product Type:
Push Button Operators
Light unit type:
LED, full voltage
Compliances:
CE Marked
Certifications:
UL Listed
Illumination:
Illuminated
Contact configuration:
1 NO
Light unit voltage:
120 Vac/dc
Operating mode:
Momentary
Lens Color:
Green
Product Length/Depth:
6.55 in
Operator material:
Plastic
Enclosure:
NEMA 4
Product Height:
1.4 in
Product Width:
2 in
Actuator:
Extended
Product Name:
Eaton HT800 pushbutton
Operator Material:
Metal
Operator Illumination:
Illuminated
Lamp Voltage - Maximum:
120 V AC/DC
Mushroom Head Diameter:
Not Applicable
Operating Temperature - Minimum:
10 Degrees F
Head Color:
Green
Overall Width:
2 in
Push Button Style:
Extended
Number of Indicator Lights:
0
Mechanical Operating Durability:
5.00 x 10^6
Panel Cutout Diameter:
30 mm
NEMA Enclosure Rating:
12, 13, 3, 3R, 4, 4X
Resistance Properties:
Oil and Grease Resistant, Watertight
Overall Height:
1.4 in
Operating Temperature - Maximum:
140 Degrees F
Manufacturer Warranty Length:
1 yr
Operator Voltage Rating - Maximum:
28 V
Overall Depth:
6.55 in
Package Quantity:
1
