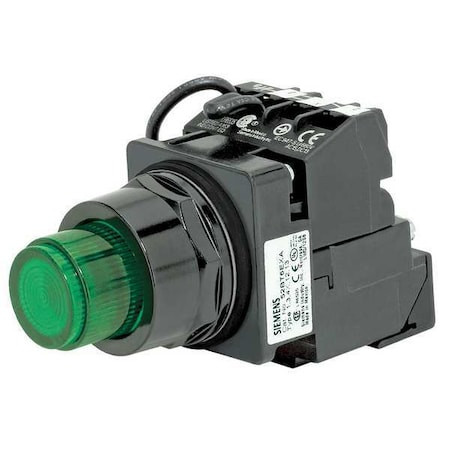

Illuminated Push Button, 30 mm, 1NO, Green - 52BT6H3KB

Name: Illuminated Push Button, 30 mm, 1NO, Green - 52BT6H3KB
Brand: Siemens
SKU: 52BT6H3KB
Price: 116.14 USD
Availability: InStock

Siemens

SKU:

52BT6H3KB

UPC:

887621500016

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Black Epoxy Coated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Action:: Maintained/Momentary
Size:: 30 mm
Head Material:: Plastic
Lamp Voltage:: 6V AC
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Type of Operator:: Round Button
Lamp Type:: LED
Contact Form:: 1NO
Color:: Green
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Item:: Illuminated Push Button
Contact Rating:: 10A @ 600V AC
Bezel Material:: Epoxy Coated Zinc Die Cast
Basic Material:: Epoxy
Terminal Connection:: Pressure Plate
Lamp Module Voltage:: 240V AC
Contact Type:: 1NO
Lamp Module Type:: Transformer
Voltage:: 240V AC
Replacement Lamp:: Mfr. No. 52AEB3
NEMA Contact Rating Designation:: A600/P600
Standards:: CSA, REACH, UL Listed
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
AC Contact Rating:: 10 A @ 600 V
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:: 52
DC Contact Rating:: Not Rated
Product Type:: Push Button Operators
Mushroom Head Diameter:: Not Applicable
Operator Illumination:: Illuminated
Operating Temperature - Maximum:: 158 Degrees F
Maintained Action Release:: Push/Pull
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Operator Material:: Epoxy
Number of Indicator Lights:: 0
Operator Voltage Rating - Maximum:: 600 V AC
Lamp Voltage - Maximum:: 240 V
Head Color:: Green
Overall Width:: 2.15 in
Panel Cutout Diameter:: 30 mm
Legend Color:: Not Applicable
Push Button Style:: Extended
Operating Temperature - Minimum:: 31 Degrees F
Manufacturer Warranty Length:: 1 yr
Overall Height:: 4.24 in
Mechanical Operating Durability:: 3.00 x 10^5
Legend Background Color:: Not Applicable
NEMA Enclosure Rating:: 4X
Package Quantity:: 1
