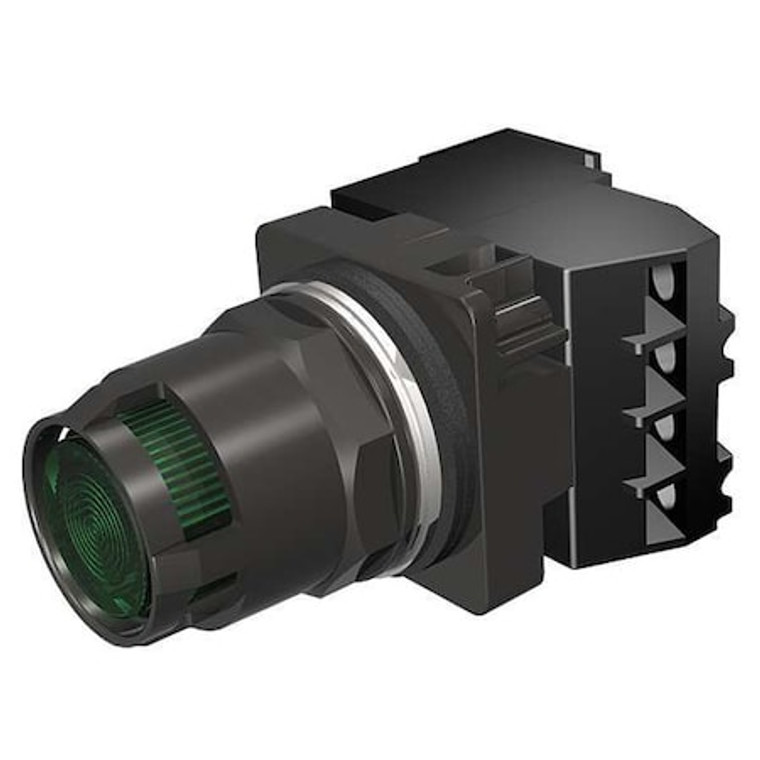

Illuminated Push Button, 30 mm, 1NO, Green - 52BT6D3KV

Name: Illuminated Push Button, 30 mm, 1NO, Green - 52BT6D3KV
Brand: Siemens
SKU: 52BT6D3KV
Price: 83.82 USD
Availability: InStock

Siemens

SKU:

52BT6D3KV

UPC:

887621496883

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Black Epoxy Coated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Item:: Illuminated Push Button
Contact Rating:: 10A @ 600V AC
Size:: 30 mm
Lamp Voltage:: 24V AC/DC
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Action:: Maintained/Momentary
Lamp Type:: Incandescent
Type of Operator:: Round Extended Guarded Button
Head Material:: Plastic
Contact Form:: 1NO
Legend:: Not Applicable
Number of Operators:: 1
Bezel:: Black Epoxy Coated Zinc Die Cast
Color:: Green
Lamp Module Voltage:: 24V AC/DC
Bezel Material:: Epoxy Coated Zinc Die Cast
Voltage:: 24V AC/DC
Lamp Module Type:: Full Voltage
Standards:: CSA, REACH, UL Listed
Terminal Connection:: Pressure Plate
Contact Type:: 1NO
Basic Material:: Epoxy
Replacement Lamp:: Mfr. No. 52AADN
NEMA Contact Rating Designation:: A600/P600
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
Series:: 52
DC Contact Rating:: Not Rated
AC Contact Rating:: 10 A @ 600 V
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:: Push Button Operators
Legend Color:: Not Applicable
Mushroom Head Diameter:: Not Applicable
Mechanical Operating Durability:: 3.00 x 10^5
Overall Width:: 2.15 in
Manufacturer Warranty Length:: 1 yr
Operating Temperature - Minimum:: 31 Degrees F
Operator Voltage Rating - Maximum:: 600 V AC
Operating Temperature - Maximum:: 158 Degrees F
Head Color:: Green
NEMA Enclosure Rating:: 4X
Lamp Voltage - Maximum:: 24 V
Panel Cutout Diameter:: 30 mm
Legend Background Color:: Not Applicable
Push Button Style:: Extended
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Operator Material:: Epoxy
Number of Indicator Lights:: 0
Overall Height:: 4.24 in
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Maintained Action Release:: Push/Pull
Operator Illumination:: Illuminated
Package Quantity:: 1
