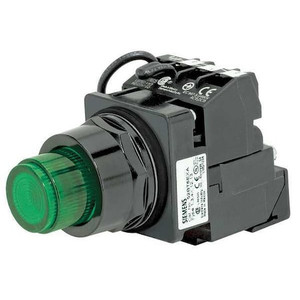

Illuminated Push Button, 30 mm, 1NO, Green - 52BT6D3KB

Name: Illuminated Push Button, 30 mm, 1NO, Green - 52BT6D3KB
Brand: Siemens
SKU: 52BT6D3KB
Price: 97.74 USD
Availability: InStock

Siemens

SKU:

52BT6D3KB

UPC:

887621496869

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Black Epoxy Coated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Action:: Maintained/Momentary
Size:: 30 mm
Head Material:: Plastic
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:: 24V AC/DC
Type of Operator:: Round Button
Lamp Type:: LED
Color:: Green
Contact Form:: 1NO
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Contact Rating:: 10A @ 600V AC
Item:: Illuminated Push Button
Bezel Material:: Epoxy Coated Zinc Die Cast
Standards:: CSA, REACH, UL Listed
NEMA Contact Rating Designation:: A600/P600
Basic Material:: Epoxy
Lamp Module Voltage:: 24V AC/DC
Voltage:: 24V AC/DC
Contact Type:: 1NO
Replacement Lamp:: Mfr. No. 52AED3
Lamp Module Type:: Full Voltage
Terminal Connection:: Pressure Plate
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
AC Contact Rating:: 10 A @ 600 V
DC Contact Rating:: Not Rated
Series:: 52
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:: Push Button Operators
Operating Temperature - Maximum:: 158 Degrees F
Head Color:: Green
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Operator Voltage Rating - Maximum:: 600 V AC
Manufacturer Warranty Length:: 1 yr
Operator Illumination:: Illuminated
Overall Width:: 2.15 in
Legend Background Color:: Not Applicable
Maintained Action Release:: Push/Pull
Lamp Voltage - Maximum:: 24 V
Mechanical Operating Durability:: 3.00 x 10^5
Push Button Style:: Extended
Panel Cutout Diameter:: 30 mm
Legend Color:: Not Applicable
Number of Indicator Lights:: 0
Operator Material:: Epoxy
Overall Height:: 4.24 in
NEMA Enclosure Rating:: 4X
Operating Temperature - Minimum:: 31 Degrees F
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Mushroom Head Diameter:: Not Applicable
Package Quantity:: 1
