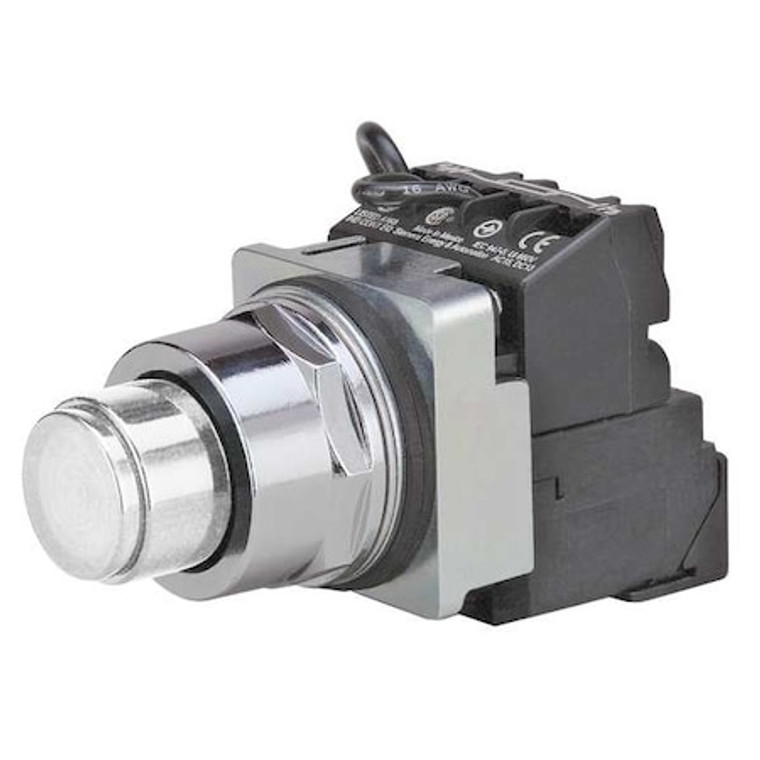

Illuminated Push Button, 30 mm, 1NO/1NC, White - 52PT6DBAB

Name: Illuminated Push Button, 30 mm, 1NO/1NC, White - 52PT6DBAB
Brand: Siemens
SKU: 52PT6DBAB
Price: 178.24 USD
Availability: InStock

Siemens

SKU:

52PT6DBAB

UPC:

662643314922

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color White, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw

Country of Origin:: Mexico
Action:: Momentary
Size:: 30 mm
Head Material:: Plastic
Lamp Voltage:: 24V AC/DC
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Type:: LED
Type of Operator:: Round Button
Color:: White
Contact Form:: 1NO/1NC
Bezel:: Chrome Plated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Item:: Illuminated Push Button
Contact Rating:: 10A @ 600V AC
Bezel Material:: Chrome
Terminal Connection:: Screw
Basic Material:: Metal
Standards:: CSA, REACH, UL Listed
Lamp Module Voltage:: 24V AC/DC
Voltage:: 24V AC/DC
Replacement Lamp:: Mfr. No. 52AEDB
Lamp Module Type:: Full Voltage
NEMA Contact Rating Designation:: A600/P600
Contact Type:: 1NO/1NC
IP Rating:: IP20, IP66
Series:: Class 52
DC Contact Rating:: Not Rated
AC Contact Rating:: 10 A @ 600 V
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:: Push Button Operators
Overall Width:: 2.15 in
Operating Temperature - Minimum:: 31 Degrees F
Resistance Properties:: Oil and Grease Resistant, Watertight
Legend Background Color:: Not Applicable
Mushroom Head Diameter:: Not Applicable
Panel Cutout Diameter:: 30 mm
Mechanical Operating Durability:: 3.00 x 10^5
Operating Temperature - Maximum:: 158 Degrees F
Manufacturer Warranty Length:: 1 yr
Operator Illumination:: Illuminated
Number of Indicator Lights:: 0
Operator Voltage Rating - Maximum:: 600 V AC
Maintained Action Release:: Not Applicable
Overall Height:: 4.24 in
Legend Color:: Not Applicable
NEMA Enclosure Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage - Maximum:: 24 V AC/DC
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Operator Material:: Metal
Push Button Style:: Extended
Head Color:: White
Package Quantity:: 1
