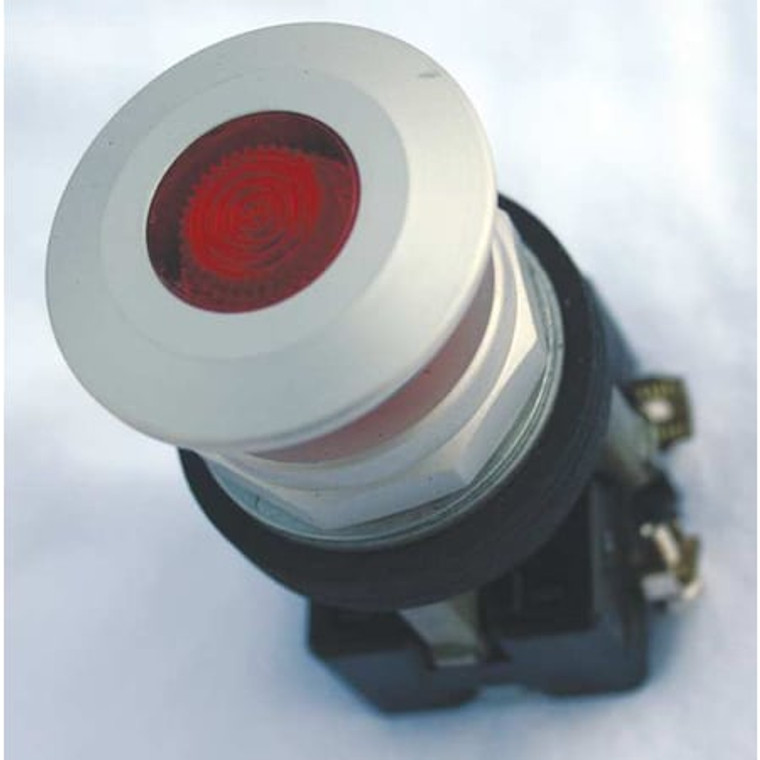

Illuminated Push Button, 30 mm, 1NO/1NC, Red - HT8FBRABF7

Illuminated Push Button, 30 mm, 1NO/1NC, Red - HT8FBRABF7

Eaton
SKU:
HT8FBRABF7
|
UPC:
782116303519
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained/Maintained Action, 41mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Anodized Aluminum/Mounting Rings, Color Red, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible, Includes Lamp
Additional Information
Country of Origin:
Dominican Republic
Action:
Maintained/Maintained
Size:
30 mm
Head Material:
Metal
NEMA Rating:
12, 13, 3, 3R, 4, 4X
Lamp Voltage:
120V AC
Lamp Type:
LED
Type of Operator:
41mm Mushroom Head
Color:
Red
Contact Form:
1NO/1NC
Bezel:
Anodized Aluminum/Mounting Rings
Number of Operators:
1
Contact Rating:
10A @ 600V AC/DC
Item:
Mushroom Head Push Button
Bezel Material:
Aluminum
Terminal Connection:
Screw Clamp
Replacement Lamp:
Mfr. No. HT8LEDRF7
Basic Material:
Metal
Lamp Module Type:
Full Voltage
NEMA Contact Rating Designation:
A600/P600
IP Rating:
IP65
Voltage:
120v
Standards:
CE, CSA, UL Listed
Lamp Module Voltage:
120V AC
Contact Type:
1NO/1NC
DC Contact Rating:
5 A @ 250 V
Series:
HT800
Features:
Allen-Bradley Pushbutton Panel Compatible
Type:
30.5 mm, Watertight/Oiltight-HT800
AC Contact Rating:
10 A @ 600 V
Rating:
NEMA 4X
Product Type:
Push Button Operators
Contact configuration:
1 NO-1 NC
Operating mode:
Pull
Light unit voltage:
120 Vac/dc
Light unit type:
LED, full voltage
Product Height:
2.5 in
Compliances:
CE Marked
Enclosure:
NEMA 3
Lens Color:
Red
Illumination:
Illuminated
Certifications:
CSA Certified
Product Length/Depth:
5 in
Product Width:
2.5 in
Number of Positions:
2
Product Name:
Eaton HT800 pushbutton
Overall Height:
2.5 in
Resistance Properties:
Oil and Grease Resistant, Watertight
Overall Width:
2.5 in
NEMA Enclosure Rating:
12, 3, 3R, 4, 4X
Mushroom Head Diameter:
40 mm
Panel Cutout Diameter:
30 mm
Overall Depth:
5 in
Lamp Voltage - Maximum:
120 V AC/DC
Head Color:
Red
Manufacturer Warranty Length:
1 yr
Operator Voltage Rating - Maximum:
28 V
Operator Material:
Metal
Operating Temperature - Minimum:
10 Degrees F
Operator Illumination:
Illuminated
Mechanical Operating Durability:
1.00 x 10^7
Number of Indicator Lights:
0
Push Button Style:
Mushroom Head
Maintained Action Release:
Push/Pull
Operating Temperature - Maximum:
140 Degrees F
Package Quantity:
1
