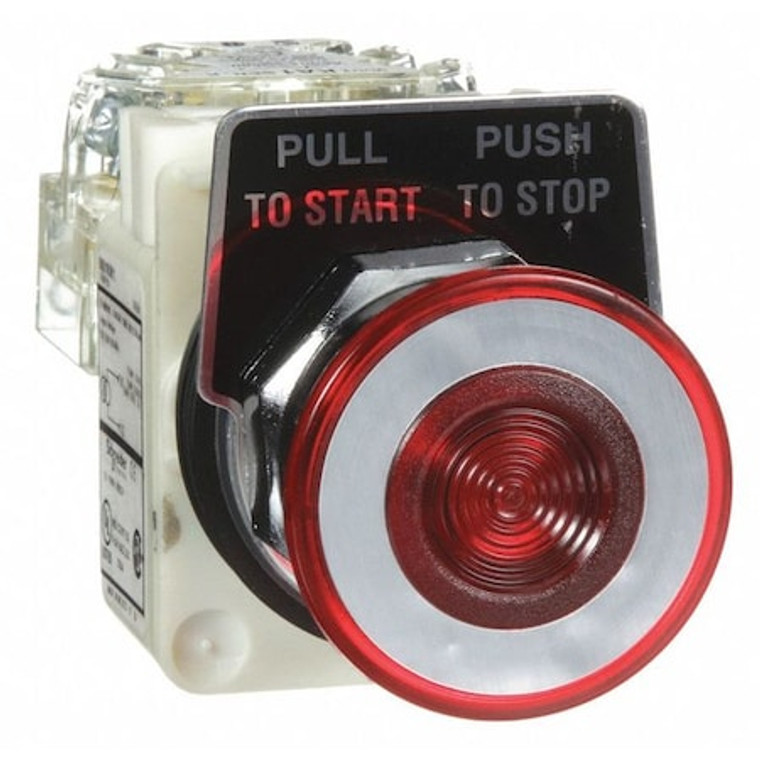

Illuminated Push Button, 30 mm, 1NO/1NC, Red - 9001KR9P1RH13

Illuminated Push Button, 30 mm, 1NO/1NC, Red - 9001KR9P1RH13

Schneider Electric
SKU:
9001KR9P1RH13
|
UPC:
785901821083
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 41mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP65, Legend Pull to Start/Push to Stop, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
6V AC
NEMA Rating:
1, 12, 13, 2, 3, 3R, 4, 6
Type of Operator:
41mm Mushroom Head
Lamp Type:
Incandescent
Color:
Red
Contact Form:
SPDT
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Pull to Start/Push to Stop
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Mushroom Head Push Button
Bezel Material:
Metal
Lamp Module Voltage:
120V AC
Basic Material:
Metal
Terminal Connection:
Screw Clamp
NEMA Contact Rating Designation:
A600/Q600
Lamp Module Type:
Transformer
Contact Type:
1NO/1NC
Standards:
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Voltage:
120V AC
Replacement Lamp:
Mfr. No. 755
IP Rating:
IP65
Series:
9001K
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type:
Push Button Operators
Connections - Terminals:
screw clamp terminals
Mounting Diameter:
30 mm
Operating Position:
any position
Supply Frequency:
50 to 60 Hz
Operator Position Information:
2 positions
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Device Short Name:
K
Product Or Component Type:
illuminated push-button
Product Certifications:
UL listed file E42259 CCN NKCR || CE || NEMA || CSA LR 25490 class 3211 03
Device Presentation:
complete product
Light Block Supply:
via integral transformer
Contact Operation:
standard
Contacts Type And Composition:
1 C/O
Light Source:
incandescent, incandescent bulb
Bulb Base:
BA 9s
Operator Additional Information:
screw-on plastic
Cap/Operator Or Lens Colour:
red
[Us] Rated Supply Voltage:
110 to 120 V, 110 to 120 V AC
[Ie] Rated Operational Current:
10 A, AC-15 || 10 A, DC-13
Operator Profile:
mushroom Ø 41 mm, red mushroom Ø 41 mm
Legend Color:
Silver
Operating Temperature - Maximum:
140 Degrees F
Legend Background Color:
Black
Head Color:
Red
Push Button Style:
Mushroom Head
Panel Cutout Diameter:
30 mm
Number of Indicator Lights:
0
Operating Temperature - Minimum:
-22 Degrees F
Mushroom Head Diameter:
41 mm
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Manufacturer Warranty Length:
18 mo
Operator Voltage Rating - Maximum:
600 V AC
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4, 6
Resistance Properties:
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Maintained Action Release:
Push/Pull
Operator Illumination:
Illuminated
Operator Material:
Plastic
Lamp Voltage - Maximum:
120 V AC
Package Quantity:
1
