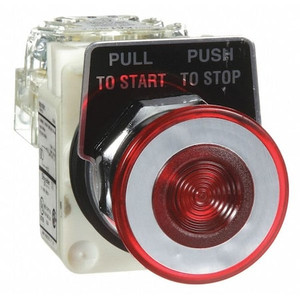

Illuminated Push Button, 30 mm, 1NO/1NC, Red - 9001K3L38LRRH13

Illuminated Push Button, 30 mm, 1NO/1NC, Red - 9001K3L38LRRH13

Schneider Electric
SKU:
9001K3L38LRRH13
|
UPC:
785901747178
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Metal
Lamp Voltage:
120V AC
NEMA Rating:
1, 12, 13, 2, 3, 3R, 4, 6
Type of Operator:
Round Extended Guarded Button
Lamp Type:
LED
Contact Form:
SPDT
Color:
Red
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Illuminated Push Button
Bezel Material:
Metal
NEMA Contact Rating Designation:
A600/Q600
Replacement Lamp:
Mfr. No. 25501-010-27
Voltage:
120V AC/DC
Basic Material:
Metal
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
IP Rating:
IP66
Contact Type:
1NO/1NC
Terminal Connection:
Screw Clamp
Lamp Module Type:
Full Voltage
Lamp Module Voltage:
120V AC
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series:
9001K
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type:
Push Button Operators
Mechanical Durability:
5000000 cycles
Tightening Torque:
0.8-0.8 N.m IEC 60947-1
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Rated Breaking Capacity:
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.55 kA 250 V DC-13 || 0.27 kA 600 V DC-13 || 0.1 kA 125 V DC-13
Operator Additional Information:
metal guard
Light Source:
LED
Product Certifications:
UL 508 || NEMA
Shape Of Screw Head:
cross slotted
[Icm] Rated Short-Circuit Making Capacity:
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
[Ie] Rated Operational Current:
0.55 A 125 V, DC-13, A600-Q600 NEMA
Bulb Base:
BA 9s
Ip Degree Of Protection:
IP66 IEC 60529
Contacts Material:
silver alloy contacts
Light Block Supply:
direct
Shock Resistance:
50 gn IEC 60068-2-27
Cap/Operator Or Lens Colour:
red
Cad Overall Width:
54 mm
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Shape Of Signaling Unit Head:
octagonal
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV IEC 60947-1
[Ith] Conventional Free Air Thermal Current:
10 A
Operator Profile:
red flush, unmarked, flush
Mounting Diameter:
30 mm
Contact Operation:
standard
Cad Overall Height:
42 mm
Device Presentation:
complete product
Light Source Colour:
red
Short-Circuit Protection:
10 A cartridge fuse IEC 60947-5-1
Product Or Component Type:
illuminated push-button
Terminals Description Iso N°1:
(13-14-11-12)OF
Ambient Air Temperature For Storage:
-40-70°C
Operating Position:
any position
Protective Treatment:
TC
Contacts Type And Composition:
1 C/O
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Overvoltage Category:
class II IEC 61140
Cad Overall Depth:
106 mm
Ambient Air Temperature For Operation:
-25-70°C
Device Short Name:
9001K
Connections - Terminals:
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Positive Opening:
without
[Us] Rated Supply Voltage:
120 V AC/DC, 120 V
Terminals Description Iso N°1:
(13-14-11-12)OF
Maintained Action Release:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Head Color:
Red
Overall Width:
2.13 in
Overall Height:
1.65 in
Resistance Properties:
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Legend Background Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Lamp Voltage - Maximum:
120 V AC/DC
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4
Number of Indicator Lights:
0
Operating Temperature - Minimum:
-13 Degrees F
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Mechanical Operating Durability:
5.00 x 10^6
Overall Depth:
4.17 in
Operator Illumination:
Illuminated
Operator Voltage Rating - Maximum:
600 V AC
Manufacturer Warranty Length:
18 mo
Push Button Style:
Flush
Legend Color:
Not Applicable
Operator Material:
Metal
Mushroom Head Diameter:
Not Applicable
Package Quantity:
1
