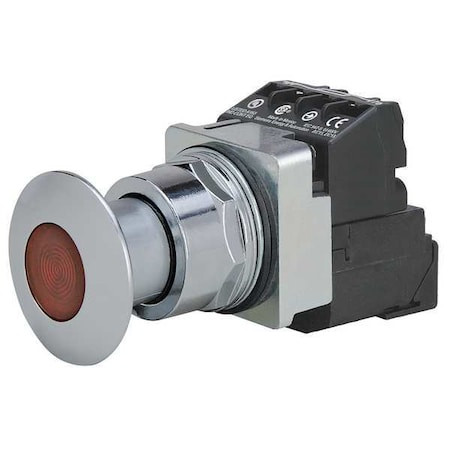

Illuminated Push Button, 30 mm, 1NO/1NC, Red - 52PP2E2A

Illuminated Push Button, 30 mm, 1NO/1NC, Red - 52PP2E2A

Siemens
SKU:
52PP2E2A
|
UPC:
662643876338
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:
120V AC
Type of Operator:
44mm Mushroom Head
Lamp Type:
Incandescent
Contact Form:
1NO/1NC
Color:
Red
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Chrome
Lamp Module Voltage:
120V AC
Voltage:
120V AC/DC
Lamp Module Type:
Full Voltage
Basic Material:
Metal
Standards:
CSA, REACH, UL Listed
NEMA Contact Rating Designation:
A600/P600
Contact Type:
1NO/1NC
Terminal Connection:
Screw
Replacement Lamp:
Mfr. No. TEL/120MB
IP Rating:
IP20, IP66
AC Contact Rating:
10 A @ 600 V
Series:
Class 52
DC Contact Rating:
Not Rated
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:
Push Button Operators
Push Button Style:
Mushroom Head
Lamp Voltage - Maximum:
120 V AC/DC
Overall Width:
2.15 in
Operating Temperature - Maximum:
158 Degrees F
Operator Voltage Rating - Maximum:
600 V AC
Maintained Action Release:
Push/Pull
Overall Height:
4.49 in
Mushroom Head Diameter:
44.45 mm
Operating Temperature - Minimum:
31 Degrees F
Legend Color:
Not Applicable
Mechanical Operating Durability:
3.00 x 10^5
Legend Background Color:
Not Applicable
Number of Indicator Lights:
0
Operator Illumination:
Illuminated
Resistance Properties:
Oil and Grease Resistant, Watertight
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Operator Material:
Metal
Panel Cutout Diameter:
30 mm
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Head Color:
Red
Manufacturer Warranty Length:
1 yr
Package Quantity:
1
