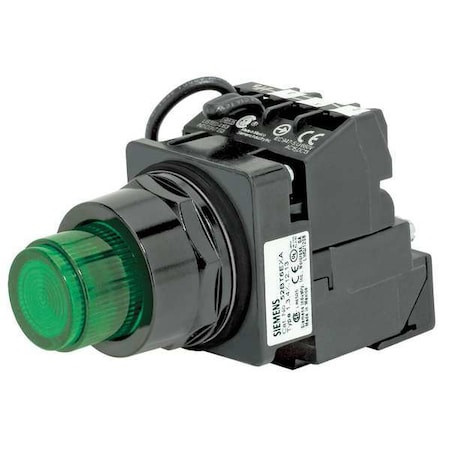

Illuminated Push Button, 30 mm, 1NO/1NC, Green - US2:52BT6G3AB

Name: Illuminated Push Button, 30 mm, 1NO/1NC, Green - US2:52BT6G3AB
Brand: Siemens
SKU: US2:52BT6G3AB
Price: 126.49 USD
Availability: InStock

Siemens

SKU:

US2:52BT6G3AB

UPC:

662643314250

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw

Country of Origin:: Mexico
Action:: Momentary
Size:: 30 mm
Head Material:: Plastic
Lamp Voltage:: 6V AC
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Type of Operator:: Extended Button
Lamp Type:: LED
Color:: Green
Contact Form:: 1NO/1NC
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Contact Rating:: 10A @ 600V AC
Item:: Illuminated Push Button
Bezel Material:: Epoxy Coated Metal
Terminal Connection:: Screw
Voltage:: 120V AC
Basic Material:: Plastic
Contact Type:: 1NO/1NC
Lamp Module Type:: Transformer
NEMA Contact Rating Designation:: A600/P600
Standards:: CSA, REACH, UL Listed
Lamp Module Voltage:: 120V AC
Replacement Lamp:: Mfr. No. 52AEB3
IP Rating:: IP20, IP66
AC Contact Rating:: 10 A @ 600 V
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:: Class 52
DC Contact Rating:: Not Rated
Product Type:: Push Button Operators
Maintained Action Release:: Not Applicable
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
NEMA Enclosure Rating:: 1, 12, 13, 3, 3R, 4, 4X
Mushroom Head Diameter:: Not Applicable
Overall Width:: 2.15 in
Head Color:: Green
Operating Temperature - Minimum:: 31 Degrees F
Operator Voltage Rating - Maximum:: 600 V AC
Operator Illumination:: Illuminated
Operating Temperature - Maximum:: 158 Degrees F
Panel Cutout Diameter:: 30 mm
Resistance Properties:: Corrosion Resistant
Lamp Voltage - Maximum:: 120 V AC
Number of Indicator Lights:: 0
Overall Height:: 4.24 in
Mechanical Operating Durability:: 3.00 x 10^5
Manufacturer Warranty Length:: 1 yr
Legend Color:: Not Applicable
Legend Background Color:: Not Applicable
Operator Material:: Epoxy Coated Metal
Push Button Style:: Extended
Package Quantity:: 1
