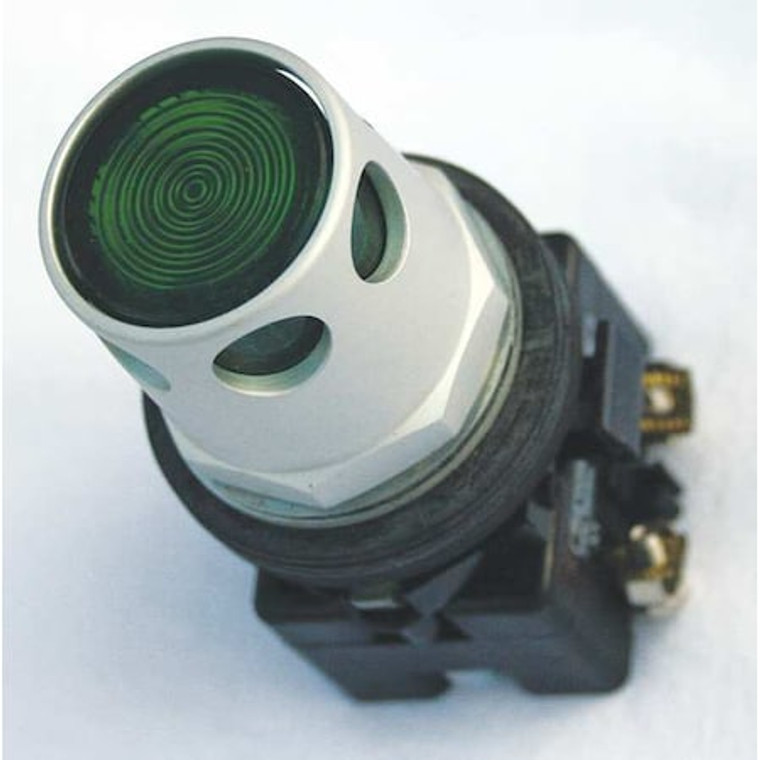

Illuminated Push Button, 30 mm, 1NO/1NC, Green - HT8GDGABL1

Illuminated Push Button, 30 mm, 1NO/1NC, Green - HT8GDGABL1

Eaton
SKU:
HT8GDGABL1
|
UPC:
782116301546
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Anodized Aluminum/Mounting Rings, Color Green, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible, Includes Lamp
Additional Information
Country of Origin:
Dominican Republic
Action:
Momentary
Size:
30 mm
Head Material:
Metal
NEMA Rating:
12, 13, 3, 3R, 4, 4X
Lamp Voltage:
6V AC
Lamp Type:
LED
Type of Operator:
Round Extended Guarded Button
Color:
Green
Contact Form:
1NO/1NC
Bezel:
Anodized Aluminum/Mounting Rings
Number of Operators:
1
Contact Rating:
10A @ 600V AC/DC
Item:
Illuminated Push Button
Bezel Material:
Chrome
Lamp Module Voltage:
120V AC
Voltage:
120v
Standards:
CE, CSA, UL Listed
Terminal Connection:
Screw Clamp
IP Rating:
IP65
Basic Material:
Metal
Contact Type:
1NO/1NC
NEMA Contact Rating Designation:
A600/P600
Replacement Lamp:
Mfr. No. HT8L1T1
Lamp Module Type:
Transformer
Type:
30.5 mm, Watertight/Oiltight-HT800
DC Contact Rating:
5 A @ 250 V
AC Contact Rating:
10 A @ 600 V
Features:
Allen-Bradley Pushbutton Panel Compatible
Series:
HT800
Product Type:
Push Button Operators
Product Height:
1.4 in
Illumination:
Illuminated
Operator material:
Plastic
Actuator:
Extended
Product Length/Depth:
6.55 in
Certifications:
UL Listed
Light unit type:
LED, transformer
Operating mode:
Momentary
Contact configuration:
1 NO-1 NC
Light unit voltage:
120 Vac/dc
Product Width:
2 in
Compliances:
CE Marked
Enclosure:
NEMA 13
Lens Color:
Green
Product Name:
Eaton HT800 pushbutton
Overall Width:
2 in
Operating Temperature - Minimum:
10 Degrees F
Lamp Voltage - Maximum:
120 V AC/DC
Resistance Properties:
Oil and Grease Resistant, Watertight
NEMA Enclosure Rating:
12, 13, 3, 3R, 4, 4X
Operator Illumination:
Illuminated
Manufacturer Warranty Length:
1 yr
Operator Voltage Rating - Maximum:
28 V
Head Color:
Green
Operating Temperature - Maximum:
140 Degrees F
Mushroom Head Diameter:
Not Applicable
Mechanical Operating Durability:
1.00 x 10^7
Panel Cutout Diameter:
30 mm
Number of Indicator Lights:
0
Push Button Style:
Extended
Overall Depth:
6.55 in
Operator Material:
Metal
Overall Height:
1.4 in
Package Quantity:
1
