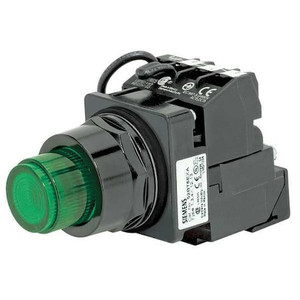

Illuminated Push Button, 30 mm, 1NO/1NC, Green - 9001K3L1GH13

Illuminated Push Button, 30 mm, 1NO/1NC, Green - 9001K3L1GH13

Schneider Electric
SKU:
9001K3L1GH13
|
UPC:
785901028376
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 3R, 4
Lamp Voltage:
6V AC
Type of Operator:
Round Extended Guarded Button
Lamp Type:
Incandescent
Color:
Green
Contact Form:
SPDT
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Illuminated Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Metal
IP Rating:
IP66
Terminal Connection:
Screw Clamp
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Lamp Module Voltage:
120V AC
Lamp Module Type:
Transformer
Voltage:
120V AC
Contact Type:
1NO/1NC
NEMA Contact Rating Designation:
A600/Q600
Basic Material:
Metal
Replacement Lamp:
Mfr. No. 755
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series:
9001K
Product Type:
Push Button Operators
Device Presentation:
complete product
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Rated Breaking Capacity:
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Shape Of Screw Head:
cross slotted
Cap/Operator Or Lens Colour:
green
Ambient Air Temperature For Storage:
-40-70°C
Supply Frequency:
50 to 60 Hz
Contact Operation:
standard
Short-Circuit Protection:
10 A cartridge fuse IEC 60947-5-1
Ambient Air Temperature For Operation:
-25-70°C
Protective Treatment:
TC
[Icm] Rated Short-Circuit Making Capacity:
12 kA 600 V AC-15, 7200 VA || 12 kA 600 V DC-13, 7200 VA || 0.1 kA 480 V AC-15 || 0.27 kA 240 V AC-15 || 0.55 kA 120 V AC-15
Shock Resistance:
50 gn IEC 60068-2-27
Overvoltage Category:
class II IEC 61140
Product Or Component Type:
illuminated push-button
Tightening Torque:
0.8-0.8 N.m IEC 60947-1
[Us] Rated Supply Voltage:
110 to 120 V AC, 110 to 120 V
Mechanical Durability:
5000000 cycles
Ip Degree Of Protection:
IP66 IEC 60529
Operator Profile:
green flush, unmarked, flush
Contacts Type And Composition:
1 C/O
Mounting Diameter:
30 mm
[Ith] Conventional Free Air Thermal Current:
10 A
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Operator Additional Information:
metal guard
[Ie] Rated Operational Current:
0.55 A 125 V, DC-13, A600-Q600 NEMA
Bulb Base:
BA 9s
Light Source:
incandescent, incandescent bulb
Light Block Supply:
via integral transformer 6 V, via integral transformer
Positive Opening:
without
Operating Position:
any position
Product Certifications:
NEMA || UL 508
Contacts Material:
silver alloy contacts
Shape Of Signaling Unit Head:
octagonal
Device Short Name:
9001K
Connections - Terminals:
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV IEC 60947-1
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Legend Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Manufacturer Warranty Length:
18 mo
Operator Illumination:
Illuminated
Mechanical Operating Durability:
5.00 x 10^6
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Lamp Voltage - Maximum:
120 V AC
Mushroom Head Diameter:
Not Applicable
Maintained Action Release:
Not Applicable
Push Button Style:
Flush
Operator Material:
Metal
Legend Background Color:
Not Applicable
Overall Width:
2.13 in
Operating Temperature - Minimum:
-13 Degrees F
Operating Temperature - Maximum:
158 Degrees F
Overall Depth:
2.8 in
Head Color:
Green
Overall Height:
1.65 in
Operator Voltage Rating - Maximum:
600 V AC
Number of Indicator Lights:
0
Resistance Properties:
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4
Package Quantity:
1
