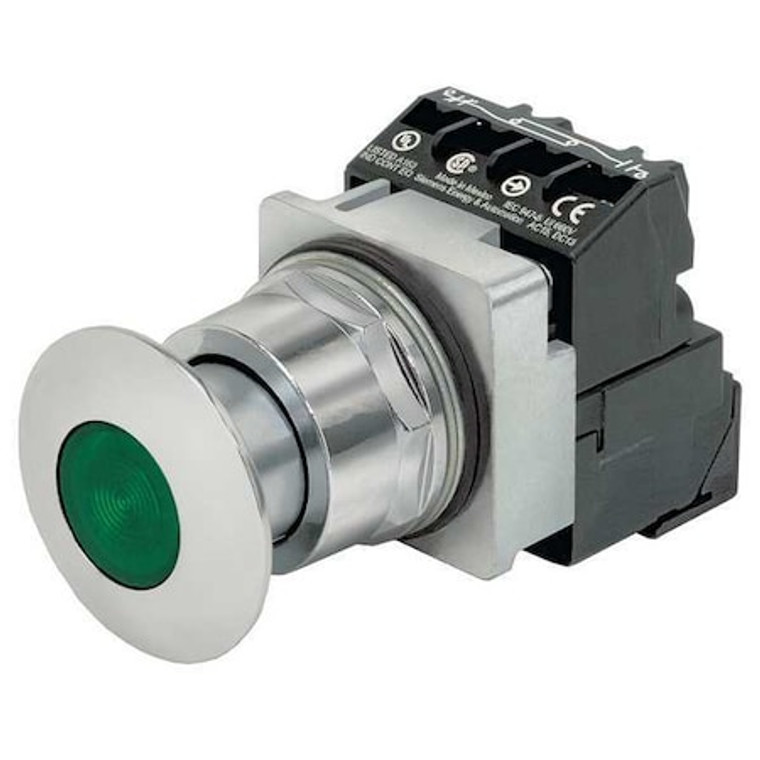

Illuminated Push Button, 30 mm, 1NO/1NC, Green - 52PP2H3A

Illuminated Push Button, 30 mm, 1NO/1NC, Green - 52PP2H3A

Siemens
SKU:
52PP2H3A
|
UPC:
662643877083
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Metal
Lamp Voltage:
6V AC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
44mm Mushroom Head
Lamp Type:
Incandescent
Color:
Green
Contact Form:
1NO/1NC
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Mushroom Head Push Button
Bezel Material:
Chrome
Replacement Lamp:
Mfr. No. 52AABN
Contact Type:
1NO/1NC
Voltage:
240V AC
NEMA Contact Rating Designation:
A600/P600
Lamp Module Voltage:
240V AC
Standards:
CSA, REACH, UL Listed
Terminal Connection:
Screw
Lamp Module Type:
Transformer
Basic Material:
Metal
IP Rating:
IP20, IP66
Series:
52
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
Not Rated
Product Type:
Push Button Operators
Maintained Action Release:
Push/Pull
Legend Color:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Overall Width:
2.15 in
Operator Material:
Metal
Mushroom Head Diameter:
44.45 mm
Push Button Style:
Mushroom Head
Panel Cutout Diameter:
30 mm
Head Color:
Green
Legend Background Color:
Not Applicable
Lamp Voltage - Maximum:
240 V AC
Operating Temperature - Minimum:
31 Degrees F
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Operator Voltage Rating - Maximum:
600 V AC
Resistance Properties:
Oil and Grease Resistant, Watertight
Manufacturer Warranty Length:
1 yr
Number of Indicator Lights:
0
Mechanical Operating Durability:
3.00 x 10^5
Operator Illumination:
Illuminated
Overall Height:
4.49 in
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Package Quantity:
1
