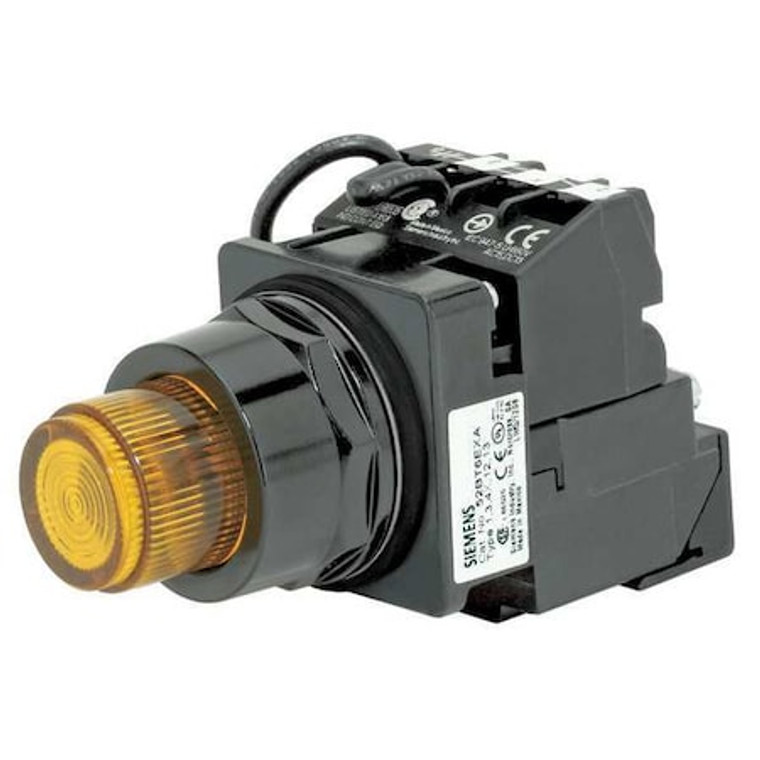

Illuminated Push Button, 30 mm, 1NO/1NC, Amber - US2:52BT6G9AB

Name: Illuminated Push Button, 30 mm, 1NO/1NC, Amber - US2:52BT6G9AB
Brand: Siemens
SKU: US2:52BT6G9AB
Price: 118.44 USD
Availability: InStock

Siemens

SKU:

US2:52BT6G9AB

UPC:

662643314274

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw

Country of Origin:: Mexico
Action:: Momentary
Size:: 30 mm
Head Material:: Plastic
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:: 6V AC
Lamp Type:: LED
Type of Operator:: Extended Button
Contact Form:: 1NO/1NC
Color:: Amber
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Item:: Illuminated Push Button
Contact Rating:: 10A @ 600V AC
Bezel Material:: Epoxy Coated Metal
Terminal Connection:: Screw
NEMA Contact Rating Designation:: A600/P600
Replacement Lamp:: Mfr. No. 52AEB4
Voltage:: 120V AC
Contact Type:: 1NO/1NC
Lamp Module Voltage:: 120V AC
Basic Material:: Plastic
Standards:: CSA, REACH, UL Listed
Lamp Module Type:: Transformer
IP Rating:: IP20, IP66
DC Contact Rating:: Not Rated
AC Contact Rating:: 10 A @ 600 V
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:: 52
Product Type:: Push Button Operators
Mechanical Operating Durability:: 3.00 x 10^5
Operating Temperature - Maximum:: 158 Degrees F
Overall Height:: 4.24 in
Mushroom Head Diameter:: Not Applicable
Lamp Voltage - Maximum:: 120 V AC
Manufacturer Warranty Length:: 1 yr
Panel Cutout Diameter:: 30 mm
Number of Indicator Lights:: 0
Legend Background Color:: Not Applicable
Operator Material:: Epoxy Coated Metal
Push Button Style:: Extended
Head Color:: Amber
Resistance Properties:: Corrosion Resistant
Overall Width:: 2.15 in
Legend Color:: Not Applicable
Operating Temperature - Minimum:: 31 Degrees F
Maintained Action Release:: Not Applicable
Operator Illumination:: Illuminated
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
NEMA Enclosure Rating:: 1, 12, 13, 3, 3R, 4, 4X
Operator Voltage Rating - Maximum:: 600 V AC
Package Quantity:: 1
