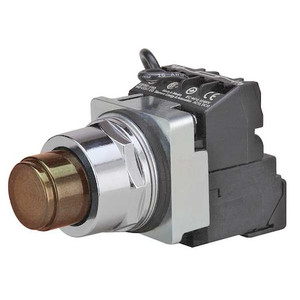

Illuminated Push Button, 30 mm, 1NO/1NC, Amber - 52BT6G9A

Name: Illuminated Push Button, 30 mm, 1NO/1NC, Amber - 52BT6G9A
Brand: Siemens
SKU: 52BT6G9A
Price: 102.34 USD
Availability: InStock

Siemens

SKU:

52BT6G9A

UPC:

662643314267

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw

Country of Origin:: Mexico
Action:: Momentary
Size:: 30 mm
Head Material:: Plastic
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:: 6V AC
Lamp Type:: Incandescent
Type of Operator:: Round Button
Contact Form:: 1NO/1NC
Color:: Amber
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Contact Rating:: 10A @ 600V AC
Item:: Illuminated Push Button
Bezel Material:: Epoxy Coated Metal
Basic Material:: Epoxy
NEMA Contact Rating Designation:: A600/P600
Terminal Connection:: Screw
Standards:: CSA, REACH, UL Listed
Lamp Module Voltage:: 120V AC
Replacement Lamp:: Mfr. No. 52AABN
Contact Type:: 1NO-1NC
Voltage:: 120V AC
Lamp Module Type:: Transformer
IP Rating:: IP20, IP66
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:: 10 A @ 600 V
Series:: 52
DC Contact Rating:: Not Rated
Product Type:: Push Button Operators
Operating Temperature - Minimum:: 31 Degrees F
Head Color:: Amber
Mechanical Operating Durability:: 3.00 x 10^5
Push Button Style:: Extended
Operating Temperature - Maximum:: 158 Degrees F
Overall Width:: 2.15 in
Operator Voltage Rating - Maximum:: 600 V AC
Panel Cutout Diameter:: 30 mm
Mushroom Head Diameter:: Not Applicable
Maintained Action Release:: Not Applicable
Overall Height:: 4.24 in
Operator Illumination:: Illuminated
Legend Background Color:: Not Applicable
Manufacturer Warranty Length:: 1 yr
Resistance Properties:: Corrosion Resistant
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
NEMA Enclosure Rating:: 1, 12, 13, 3, 3R, 4, 4X
Number of Indicator Lights:: 0
Legend Color:: Not Applicable
Operator Material:: Epoxy Coated Metal
Lamp Voltage - Maximum:: 120 V AC
Package Quantity:: 1
