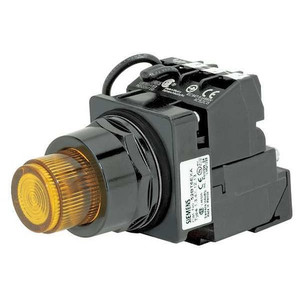

Illuminated Push Button, 30 mm, 1NO/1NC, Amber - 52BT6D9A

Illuminated Push Button, 30 mm, 1NO/1NC, Amber - 52BT6D9A

Siemens
SKU:
52BT6D9A
|
UPC:
662643874020
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Plastic
Lamp Voltage:
24V AC/DC
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
Round Button
Lamp Type:
Incandescent
Contact Form:
1NO/1NC
Color:
Amber
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Item:
Illuminated Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Epoxy Coated Metal
Basic Material:
Epoxy
Lamp Module Voltage:
24V AC/DC
Contact Type:
1NO/1NC
Voltage:
24V AC/DC
Replacement Lamp:
Mfr. No. 52AADN
Lamp Module Type:
Full Voltage
NEMA Contact Rating Designation:
A600/P600
Standards:
CSA, REACH, UL Listed
Terminal Connection:
Screw
IP Rating:
IP20, IP66
DC Contact Rating:
Not Rated
Series:
Class 52
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
Product Type:
Push Button Operators
Operator Material:
Epoxy Coated Metal
Push Button Style:
Extended
Overall Width:
2.15 in
Operator Illumination:
Illuminated
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Manufacturer Warranty Length:
1 yr
Maintained Action Release:
Not Applicable
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Legend Color:
Not Applicable
Operator Voltage Rating - Maximum:
600 V AC
Panel Cutout Diameter:
30 mm
Number of Indicator Lights:
0
Operating Temperature - Minimum:
31 Degrees F
Mushroom Head Diameter:
Not Applicable
Mechanical Operating Durability:
3.00 x 10^5
Resistance Properties:
Corrosion Resistant
Head Color:
Amber
Overall Height:
4.24 in
Lamp Voltage - Maximum:
24 V AC/DC
Legend Background Color:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Package Quantity:
1
