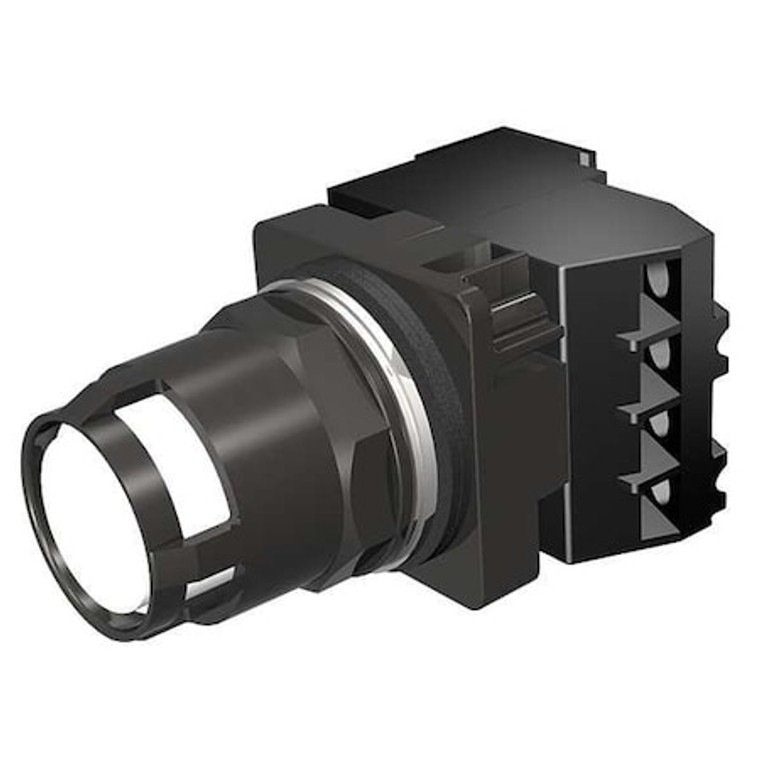

Illuminated Push Button, 30 mm, 1NC, White - 52BT6GBJBV

Name: Illuminated Push Button, 30 mm, 1NC, White - 52BT6GBJBV
Brand: Siemens
SKU: 52BT6GBJBV
Price: 113.03 USD
Availability: InStock

Siemens

SKU:

52BT6GBJBV

UPC:

887621497835

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color White, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Action:: Maintained/Momentary
Size:: 30 mm
Head Material:: Plastic
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:: 6V AC
Type of Operator:: Round Extended Guarded Button
Lamp Type:: LED
Color:: White
Contact Form:: 1NC
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Item:: Illuminated Push Button
Contact Rating:: 10A @ 600V AC
Bezel Material:: Epoxy Coated Zinc Die Cast
Standards:: CSA, REACH, UL Listed
Contact Type:: 1NC
Voltage:: 120V AC
NEMA Contact Rating Designation:: A600/P600
Terminal Connection:: Pressure Plate
Lamp Module Type:: Transformer
Replacement Lamp:: Mfr. No. 52AEBB
Lamp Module Voltage:: 120V AC
Basic Material:: Epoxy
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
AC Contact Rating:: 10 A @ 600 V
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
DC Contact Rating:: Not Rated
Series:: 52
Product Type:: Push Button Operators
Lamp Voltage - Maximum:: 120 V
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Maintained Action Release:: Push/Pull
Operator Illumination:: Illuminated
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Legend Color:: Not Applicable
Operator Material:: Epoxy
NEMA Enclosure Rating:: 4X
Legend Background Color:: Not Applicable
Manufacturer Warranty Length:: 1 yr
Panel Cutout Diameter:: 30 mm
Number of Indicator Lights:: 0
Mushroom Head Diameter:: Not Applicable
Overall Height:: 4.24 in
Mechanical Operating Durability:: 3.00 x 10^5
Operator Voltage Rating - Maximum:: 600 V AC
Push Button Style:: Extended
Operating Temperature - Minimum:: 31 Degrees F
Overall Width:: 2.15 in
Operating Temperature - Maximum:: 158 Degrees F
Head Color:: White
Package Quantity:: 1
