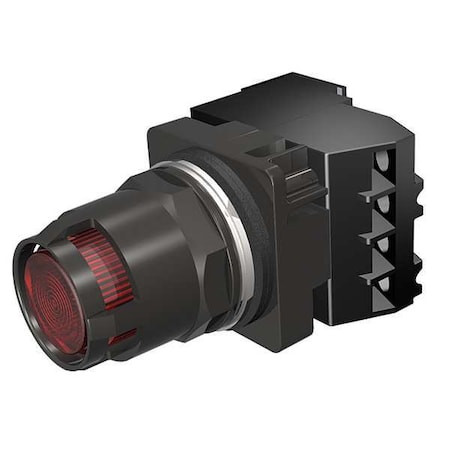

Illuminated Push Button, 30 mm, 1NC, Red - 52BT6H2JBV

Illuminated Push Button, 30 mm, 1NC, Red - 52BT6H2JBV

Siemens
SKU:
52BT6H2JBV
|
UPC:
887621497934
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained/Momentary
Size:
30 mm
Head Material:
Plastic
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:
6V AC
Lamp Type:
LED
Type of Operator:
Round Extended Guarded Button
Contact Form:
1NC
Color:
Red
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Illuminated Push Button
Bezel Material:
Epoxy Coated Zinc Die Cast
Standards:
CSA, REACH, UL Listed
Lamp Module Voltage:
240V AC
Replacement Lamp:
Mfr. No. 52AEB2
Basic Material:
Epoxy
NEMA Contact Rating Designation:
A600/P600
Contact Type:
1NC
Terminal Connection:
Pressure Plate
Lamp Module Type:
Transformer
Voltage:
240V AC
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Series:
52
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
Not Rated
Product Type:
Push Button Operators
Operator Material:
Epoxy
Overall Width:
2.15 in
Manufacturer Warranty Length:
1 yr
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Head Color:
Red
NEMA Enclosure Rating:
4X
Operator Voltage Rating - Maximum:
600 V AC
Operating Temperature - Maximum:
158 Degrees F
Mechanical Operating Durability:
3.00 x 10^5
Operator Illumination:
Illuminated
Lamp Voltage - Maximum:
240 V
Legend Color:
Not Applicable
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Push Button Style:
Extended
Operating Temperature - Minimum:
31 Degrees F
Legend Background Color:
Not Applicable
Mushroom Head Diameter:
Not Applicable
Maintained Action Release:
Push/Pull
Overall Height:
4.24 in
Number of Indicator Lights:
0
Panel Cutout Diameter:
30 mm
Package Quantity:
1
