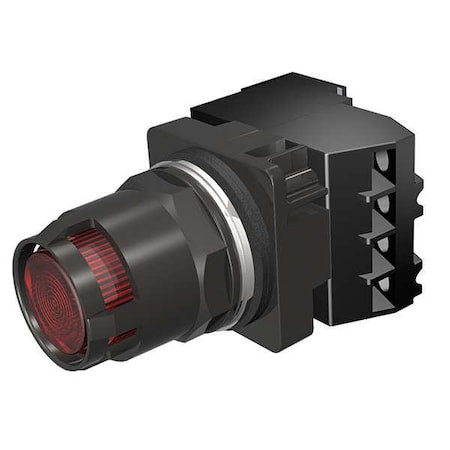

Illuminated Push Button, 30 mm, 1NC, Red - 52BT6D2JBV

Illuminated Push Button, 30 mm, 1NC, Red - 52BT6D2JBV

Siemens
SKU:
52BT6D2JBV
|
UPC:
887621496739
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Maintained/Momentary
Size:
30 mm
Head Material:
Plastic
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:
24V AC/DC
Type of Operator:
Round Extended Guarded Button
Lamp Type:
LED
Color:
Red
Contact Form:
1NC
Bezel:
Black Epoxy Coated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Illuminated Push Button
Bezel Material:
Epoxy Coated Zinc Die Cast
Contact Type:
1NC
NEMA Contact Rating Designation:
A600/P600
Lamp Module Type:
Full Voltage
Terminal Connection:
Pressure Plate
Standards:
CSA, REACH, UL Listed
Voltage:
24V AC/DC
Lamp Module Voltage:
24V AC/DC
Basic Material:
Epoxy
Replacement Lamp:
Mfr. No. 52AED2
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
Not Rated
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
52
Product Type:
Push Button Operators
Operator Voltage Rating - Maximum:
600 V AC
Operating Temperature - Maximum:
158 Degrees F
Mushroom Head Diameter:
Not Applicable
Mechanical Operating Durability:
3.00 x 10^5
Resistance Properties:
Corrosion Resistant, Oil and Grease Resistant, Watertight
Operator Illumination:
Illuminated
Panel Cutout Diameter:
30 mm
Lamp Voltage - Maximum:
24 V
Overall Height:
4.24 in
NEMA Enclosure Rating:
4X
Head Color:
Red
Operating Temperature - Minimum:
31 Degrees F
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Push Button Style:
Extended
Overall Width:
2.15 in
Legend Background Color:
Not Applicable
Number of Indicator Lights:
0
Maintained Action Release:
Push/Pull
Manufacturer Warranty Length:
1 yr
Operator Material:
Epoxy
Legend Color:
Not Applicable
Package Quantity:
1
