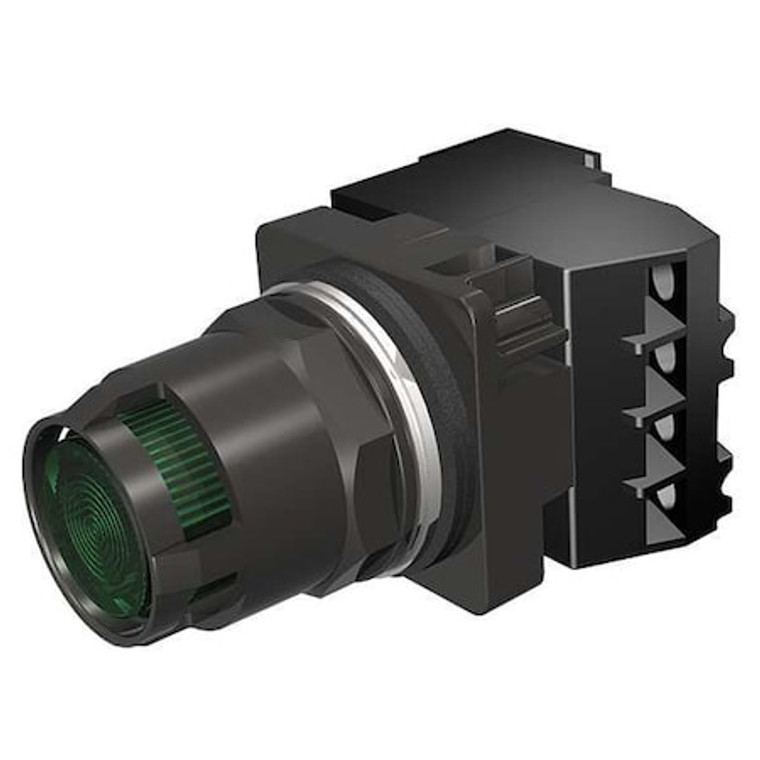

Illuminated Push Button, 30 mm, 1NC, Green - 52BT6D3JV

Name: Illuminated Push Button, 30 mm, 1NC, Green - 52BT6D3JV
Brand: Siemens
SKU: 52BT6D3JV
Price: 87.39 USD
Availability: InStock

Siemens

SKU:

52BT6D3JV

UPC:

887621496845

Availability:

In Stock

(No reviews yet)

Illuminated Push Button, 30 mm, Maintained/Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate

Country of Origin:: Mexico
Action:: Maintained/Momentary
Size:: 30 mm
Head Material:: Plastic
NEMA Rating:: 1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage:: 24V AC/DC
Lamp Type:: Incandescent
Type of Operator:: Round Extended Guarded Button
Contact Form:: 1NC
Color:: Green
Bezel:: Black Epoxy Coated Zinc Die Cast
Legend:: Not Applicable
Number of Operators:: 1
Item:: Illuminated Push Button
Contact Rating:: 10A @ 600V AC
Bezel Material:: Epoxy Coated Zinc Die Cast
Terminal Connection:: Pressure Plate
Lamp Module Voltage:: 24V AC/DC
NEMA Contact Rating Designation:: A600/P600
Lamp Module Type:: Full Voltage
Contact Type:: 1NC
Voltage:: 24V AC/DC
Basic Material:: Epoxy
Replacement Lamp:: Mfr. No. 52AADN
Standards:: CSA, REACH, UL Listed
IP Rating:: IP10, IP11, IP14, IP52, IP54, IP56, IP66
DC Contact Rating:: Not Rated
AC Contact Rating:: 10 A @ 600 V
Series:: 52
Features:: Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:: Push Button Operators
Manufacturer Warranty Length:: 1 yr
Operating Temperature - Maximum:: 158 Degrees F
Hazardous Location Specification:: Class I, Div 2, Group A, B, C, D
Overall Height:: 4.24 in
Maintained Action Release:: Push/Pull
Operator Material:: Epoxy
Head Color:: Green
Operating Temperature - Minimum:: 31 Degrees F
Operator Voltage Rating - Maximum:: 600 V AC
Resistance Properties:: Corrosion Resistant, Oil and Grease Resistant, Watertight
Push Button Style:: Extended
Legend Color:: Not Applicable
Lamp Voltage - Maximum:: 24 V
Overall Width:: 2.15 in
Mechanical Operating Durability:: 3.00 x 10^5
Panel Cutout Diameter:: 30 mm
Number of Indicator Lights:: 0
Legend Background Color:: Not Applicable
Mushroom Head Diameter:: Not Applicable
NEMA Enclosure Rating:: 4X
Operator Illumination:: Illuminated
Package Quantity:: 1
